Toyota Corolla Cross: System Diagram
Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Window / Glass / Windshield Deicer System / System Diagram

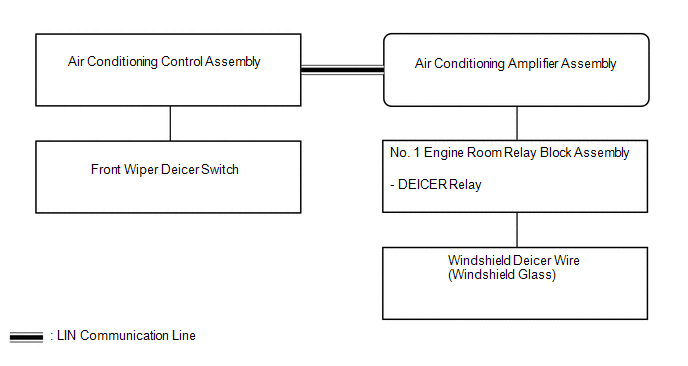

SYSTEM DIAGRAM
READ NEXT:
System Description
SYSTEM DESCRIPTION GENERAL The windshield deicer system uses thin heater wires attached to the inside of the windshield glass to help deice the window surface more quickly. An indicator light illumina
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT
HINT:
Use the following procedure to troubleshoot the windshield deicer system.
*: Use the GTS.
PROCEDURE
1. VEHICLE BROUGHT TO WORKSHOP
NEXT
Operation Check
OPERATION CHECK CHECK WINDSHIELD DEICER SYSTEM
(a) Turn the ignition switch to ON. (b) Check that the windshield deicer wire (windshield glass) becomes warm by operating the front wiper deicer switch
