Toyota Corolla Cross: System Diagram

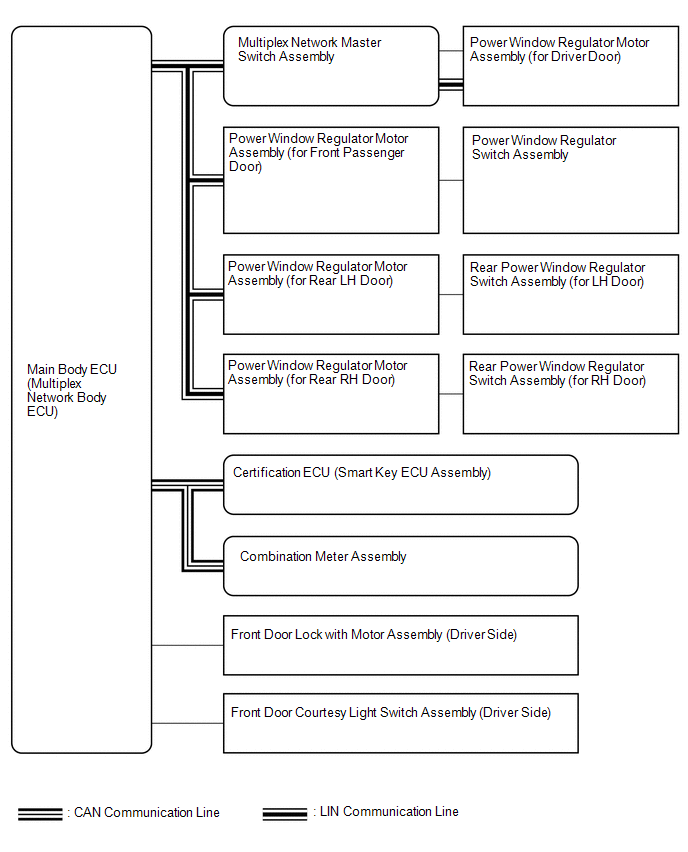

SYSTEM DIAGRAM

Communication Table

Transmitting ECU

Receiving ECU

Signal

Communication Method

Multiplex Network Master Switch Assembly

Power Window Regulator Motor Assembly (for Driver Door)

Power window auto up and down signal

LIN

  • Power Window Regulator Motor Assembly (for Front Passenger Door)
  • Power Window Regulator Motor Assembly (for Rear RH Door)
  • Power Window Regulator Motor Assembly (for Rear LH Door)

Power window remote up and down signal

LIN

Main Body ECU (Multiplex Network Body ECU)

  • Power Window Regulator Motor Assembly (for Driver Door)
  • Power Window Regulator Motor Assembly (for Front Passenger Door)
  • Power Window Regulator Motor Assembly (for Rear RH Door)
  • Power Window Regulator Motor Assembly (for Rear LH Door)

Power window operation permission signal

LIN

Certification ECU (Smart Key ECU Assembly)

Main Body ECU (Multiplex Network Body ECU)

Wireless power window operation signal

CAN

Main Body ECU (Multiplex Network Body ECU)

Combination Meter Assembly

Window open warning request signal

CAN
