Toyota Corolla Cross: System Description
SYSTEM DESCRIPTION
LOAD OPERATION OUTPUT
(a) Load is turned on or off according to the operation signals and switch signals from each ECU.
|
Components |
Power Distribution Box Assembly |
|---|---|
|
Rear Window Defogger |
○ |
|
Back-up Light |
○ |
|
Dome Cut |
○ |
|
Tail Light |
○ |
|
Front Fog Light*1 |
○ |
|
Panel Illumination |
○ |
|
Passenger Seat Buckle Switch Delegated Input |
○ |
|
Passenger Seat Occupant Detection Sensor Delegated Input |
○ |
|
Rear Seat RH Buckle Switch Delegated Input |
○ |
|
Rear Seat CTR Buckle Switch Delegated Input |
○ |
|
Rear Seat LH Buckle Switch Delegated Input |
○ |
|
IGR Relay*2 |
○ |
|
+BA Relay |
○ |
- *1: w/ Front Fog Light
- *2: w/o Smart Key System

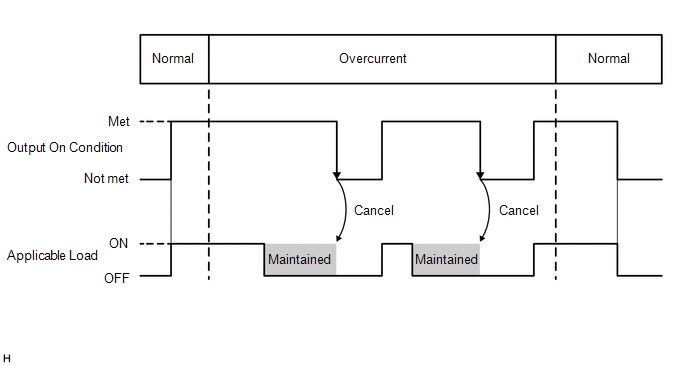

SEMICONDUCTOR FUSE FUNCTION
(a) When a malfunction current occurs during load operation, the current is shut off before the electrical lines emit smoke, and then load is turned off. After the current is shut off, the off condition is maintained until the operation signals or switch signals turn off.
