Toyota Corolla Cross: Second Row Right Seat Belt Pretensioner Deployment Control Circuit Resistance Below Threshold (B00751A)

DESCRIPTION

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B00751A	Second Row Right Seat Belt Pretensioner Deployment Control Circuit Resistance Below Threshold	The airbag ECU assembly detects a line short in the rear pretensioner squib RH circuit for 2 seconds during the primary check. Rear seat outer belt assembly RH malfunction Airbag ECU assembly malfunction	Harness or connector Rear seat outer belt assembly RH Airbag ECU assembly	Comes on	Applies to check mode

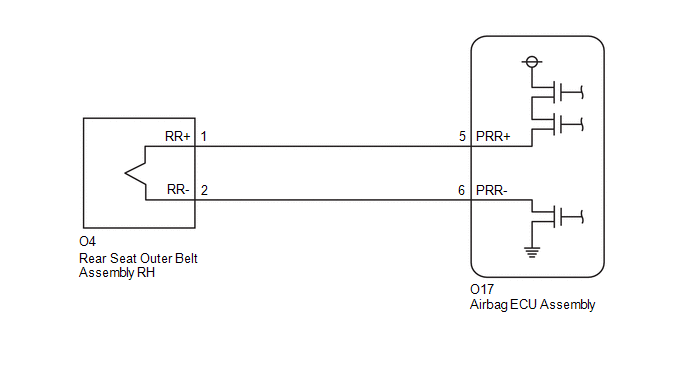

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

• After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

  Click here

  HINT:

  When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

  Click here

• After replacing the airbag ECU assembly, refer to work procedure.

  Click here

HINT:

• To perform the simulation method, enter check mode (signal check) with the GTS.

  Click here

• Perform the simulation method while checking the Data List.

  Click here

PROCEDURE

1.

CLEAR DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(c) Turn the ignition switch off.

NEXT

2.

CHECK DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B00751A is output	A
B00751A is not output	B

B

USE SIMULATION METHOD TO CHECK

A

3.	CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 60 seconds.

(c) Check that the connectors are properly connected to the rear seat outer belt assembly RH and airbag ECU assembly.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS PROPERLY

OK

4.	CHECK CONNECTORS

(a) Disconnect the airbag ECU assembly connector.

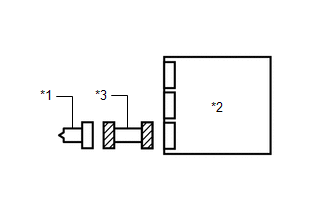

*1 Rear Seat Outer Belt Assembly RH *2 Airbag ECU Assembly *3 Wire Harness

(b) Disconnect the rear seat outer belt assembly RH connector.

(c) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

(d) Check that the connectors are not loose, deformed or damaged.

OK:

The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

(e) Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

5.

CLEAR DTC

(a) Connect the airbag ECU assembly connector.

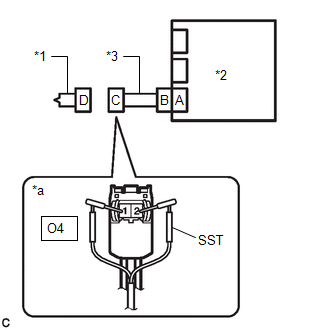

*1 Rear Seat Outer Belt Assembly RH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector (to Rear Seat Outer Belt Assembly RH)

(b) Connect SST (resistance: 2.1 Ω) to connector C.

CAUTION:

Never connect the tester to the rear seat outer belt assembly RH for measurement, as this may lead to a serious injury due to pretensioner deployment.

NOTICE:

• Do not forcibly insert SST into the terminals of the connector when connecting SST.
• Insert SST straight into the terminals of the connector.

SST: 09843-18061

(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

NEXT

6.	CHECK REAR SEAT OUTER BELT ASSEMBLY RH

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B00751A is not output	A
B00751A is output	B

HINT:

Codes other than DTC B00751A may be output at this time, but they are not related to this check.

(c) Turn the ignition switch off.

(d) Disconnect the cable from the negative (-) battery terminal, and wait for at least 60 seconds.

(e) Disconnect SST from connector C.

A

REPLACE REAR SEAT OUTER BELT ASSEMBLY RH

B

7.	CHECK HARNESS AND CONNECTOR

(a) Disconnect the airbag ECU assembly connector.

*1	Rear Seat Outer Belt Assembly RH
*2	Airbag ECU Assembly
*3	Wire Harness

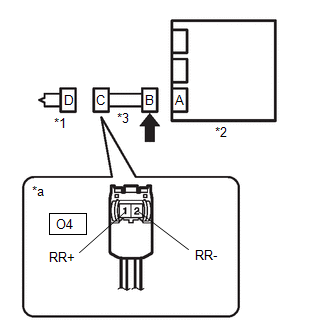

*a	Front view of wire harness connector (to Rear Seat Outer Belt Assembly RH)
	Release the activation prevention mechanism

(b) Release the activation prevention mechanism built into connector B.

HINT:

Click here

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O4-1 (RR+) - O4-2 (RR-)	Always	1 MΩ or higher

(d) Restore the released activation prevention mechanism of connector B to its original condition.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

8.

CLEAR DTC

(a) Connect the airbag ECU assembly connector.

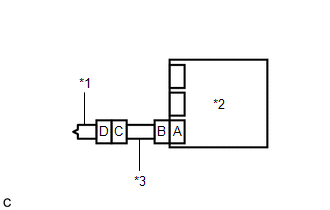

*1 Rear Seat Outer Belt Assembly RH *2 Airbag ECU Assembly *3 Wire Harness

(b) Connect the rear seat outer belt assembly RH connector.

(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

NEXT

9.

CHECK DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B00751A is not output	A
B00751A is output	B

HINT:

Codes other than DTC B00751A may be output at this time, but they are not related to this check.

A

USE SIMULATION METHOD TO CHECK

B

REPLACE AIRBAG ECU ASSEMBLY
