Toyota Corolla Cross: Right Side Airbag Deployment Control Circuit Short to Ground (B002811)

DESCRIPTION

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B002811	Right Side Airbag Deployment Control Circuit Short to Ground	One of the following conditions is met: The airbag ECU assembly detects a short to ground in the front side squib RH circuit for 0.5 seconds. Front side squib RH (front seat airbag assembly RH) malfunction Airbag ECU assembly malfunction	Harness or connector Front side squib RH (Front seat airbag assembly RH) Airbag ECU assembly	Comes on	Applies to check mode

DTC Detection Conditions:

		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	Ignition switch ON	○	○	○
Malfunction Status	The airbag ECU assembly detects a short to ground in the front side squib RH circuit	○	-	-
	Front side squib RH (front seat airbag assembly RH) malfunction	-	○	-
	Airbag ECU assembly malfunction	-	-	○
Detection Time		0.5 seconds	0.5 seconds	0.5 seconds
Number of Trips		1 trip	1 trip	1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

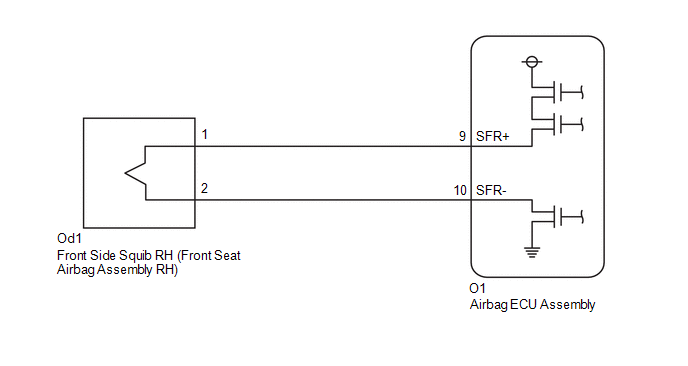

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click here

HINT:

• When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

  Click here

• To perform the simulation method, select Check Mode with the GTS.

  Click here

• Perform the simulation method while checking the Data List.

  Click here

PROCEDURE

1.	CHECK CURRENT DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
Current B002811 is output	A
Current B002811 is not output	B

B

USE SIMULATION METHOD TO CHECK Click here HINT: Perform the simulation method by selecting Check Mode using the GTS. Click here Perform the simulation method while checking the Data List. Click here

A

2.	CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the front seat airbag assembly RH and airbag ECU assembly.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS PROPERLY

OK

3.	CHECK CONNECTORS

(a) Disconnect the connectors from the front seat airbag assembly RH and airbag ECU assembly.

(b) Check that the terminals of the connectors are not deformed or damaged. OK: The terminals of the connectors are not deformed or damaged.

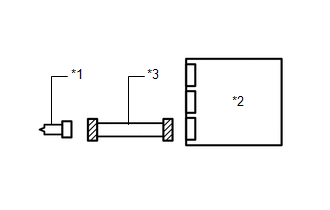

*1 Front Seat Airbag Assembly RH *2 Airbag ECU Assembly *3 Wire Harness

(c) Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CLEAR DTC

(a) Connect the connector to the airbag ECU assembly.

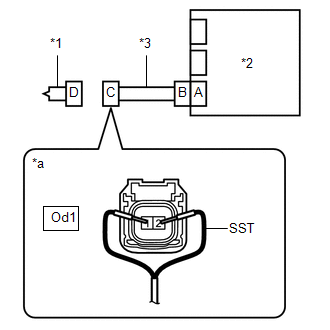

*1 Front Seat Airbag Assembly RH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector (to Front Seat Airbag Assembly RH)

(b) Connect the red wire side of SST (resistance 2.1 Ω) to connector C.

CAUTION:

Never connect a tester to the front seat airbag assembly RH for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:

• Do not forcibly insert SST into the terminals of the connector when connecting it.
• Insert SST straight into the terminals of the connector.

SST: 09843-18061

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

NEXT

5.	CHECK FRONT SEAT AIRBAG ASSEMBLY RH

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B002811 is not output	A
B002811 is output	B

HINT:

Codes other than DTC B002811 may be output at this time, but they are not related to this check.

(c) Turn the ignition switch off.

(d) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(e) Disconnect SST from connector C.

A

REPLACE FRONT SEAT AIRBAG ASSEMBLY RH

B

6.	CHECK HARNESS AND CONNECTOR

(a) Disconnect the connector from the airbag ECU assembly.

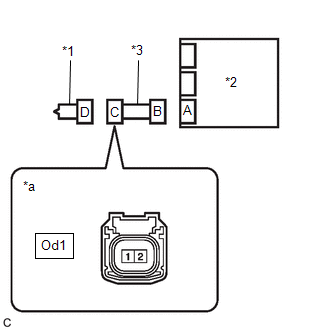

*1 Front Seat Airbag Assembly RH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector (to Front Seat Airbag Assembly RH)

(b) Check for a short to ground in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Od1-1 - Body ground	Always	1 MΩ or higher
Od1-2 - Body ground	Always	1 MΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

7.

CLEAR DTC

(a) Connect the connectors to the front seat airbag assembly RH and airbag ECU assembly.

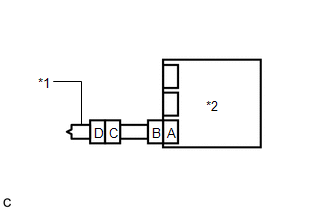

*1 Front Seat Airbag Assembly RH *2 Airbag ECU Assembly

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

NEXT

8.

CHECK DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B002811 is not output	A
B002811 is output	B

HINT:

Codes other than DTC B002811 may be output at this time, but they are not related to this check.

A

USE SIMULATION METHOD TO CHECK Click here HINT: Perform the simulation method by selecting Check Mode using the GTS. Click here Perform the simulation method while checking the Data List. Click here

B

REPLACE AIRBAG ECU ASSEMBLY
