Toyota Corolla Cross: Right Electric Parking Brake Actuator Signal Stuck In Range (C06132A)

Toyota Corolla Cross (2022-2024) Service Manual / Brake / Parking Brake / Electric Parking Brake System (for Gasoline Model) / Right Electric Parking Brake Actuator Signal Stuck In Range (C06132A)

DESCRIPTION

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Memory

Note

C06132A

Right Electric Parking Brake Actuator Signal Stuck In Range

  • Diagnosis Condition:

    Electric parking brake operating

  • Malfunction Status:

    Motor locked, gear locked, free spinning

  • Detection Time:

    -

  • Parking brake actuator assembly RH
  • No. 1 parking brake wire assembly
  • Wire harness or connector
  • Rear brake RH

DTC stored

An electric parking brake system malfunction is displayed on the multi-information display.

WIRING DIAGRAM

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Although DTC C06132A may be stored after entering pad replacement mode, this is not a malfunction.
  • Although DTC C06132A may be stored after forcibly releasing the parking brake, this is not a malfunction.
  • The electric parking brake may still operate up to 20 seconds after the ignition switch is turned off. Before disconnecting connectors or fuses, turn the ignition switch off and wait 20 seconds or more.
  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

    Click here

  • When replacing the skid control ECU (brake actuator assembly), operate the electric parking brake switch (electric parking brake switch assembly) as the parking brake indicator light (red) blinks when the ignition switch is first turned ON.

PROCEDURE

1.

CHECK DTC

(a) Using the GTS, check for DTCs other than DTC C06132A.

Chassis > Brake/EPB > Trouble Codes

Result

Proceed to

Only DTC C06132A is output

A

DTCs other than C06132A are output

B

B

GO TO DIAGNOSTIC TROUBLE CODE CHART

A

2.

INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY

(a) Turn the ignition switch off.

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(c) Disconnect the oO3 and o1 No. 1 parking brake wire assembly connectors.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

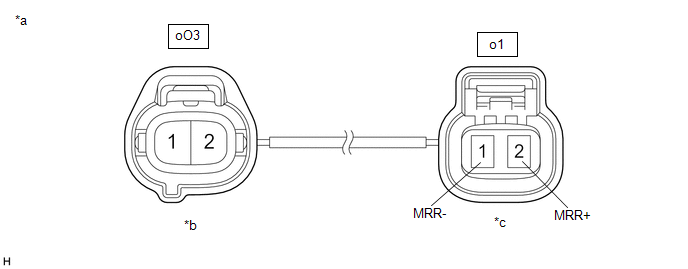

*a

Front view of No. 1 Parking Brake Wire Assembly

*b

(to wire harness connector)

*c

(to Parking Brake Actuator Assembly RH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

oO3-1 - o1-2 (MRR+)

Always

Below 1 Ω

oO3-1 or o1-2 (MRR+) - Body ground and other terminals

Always

10 kΩ or higher

oO3-2 - o1-1 (MRR-)

Always

Below 1 Ω

oO3-2 or o1-1 (MRR-) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY

OK

3.

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY RH)

(a) Turn the ignition switch off.

(b) Make sure the No. 1 parking brake wire assembly is securely installed.

(c) Disconnect the A151 skid control ECU (brake actuator assembly) connector.

(d) Disconnect the o1 parking brake actuator assembly RH connector.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A151-2 (MRR+) - o1-2 (MRR+)

Always

Below 1 Ω

A151-3 (MRR-) - o1-1 (MRR-)

Always

Below 1 Ω

A151-2 (MRR+) or o1-2 (MRR+) - Body ground

Always

10 kΩ or higher

A151-3 (MRR-) or o1-1 (MRR-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

INSPECT REAR BRAKE AND PARKING BRAKE ACTUATOR ASSEMBLY RH (CHECK FOR ROTATING PARTS THAT ARE STUCK AND FOR FREE SPINNING ACTUATORS)

(a) Enter rear brake pad replacement mode.

Click here

(b) Turn the ignition switch off.

(c) Check that the rotating parts are not seized and the actuator is not spinning freely.

(1) Check that the parking brake actuator assembly RH is installed properly to the rear brake caliper and that it is not spinning freely.

For the parking brake actuator assembly RH removal procedure:

Click here

(2) Check that there is no damage to the rotating parts from the parking brake actuator assembly RH to the rear brake caliper.

(3) Inspect the parking brake actuator assembly RH and check that it operates correctly.

Click here

(4) Check that the rear brake caliper threaded part rotates and that the rear disc brake piston moves outward.

HINT:

For the check procedures, refer to the parking brake forced release method when not using the GTS.

Click here

HINT:

Return to normal mode after work is complete.

Click here

Result

Proceed to

Parking brake actuator assembly RH is malfunctioning

A

Other than parking brake actuator assembly RH is malfunctioning

B

A

REPLACE PARKING BRAKE ACTUATOR ASSEMBLY RH

B

REPAIR OR REPLACE ABNORMAL PARTS
