Removal
REMOVAL
CAUTION / NOTICE / HINT

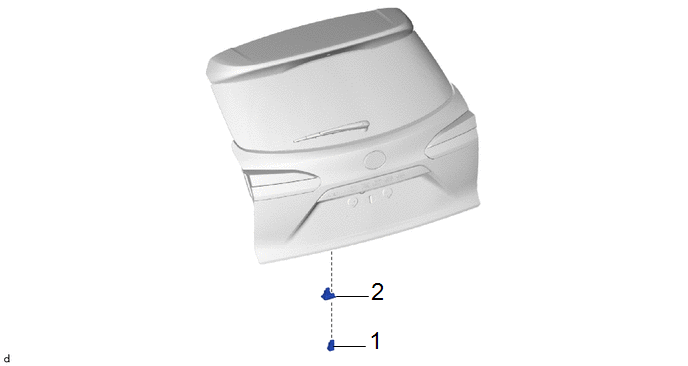

COMPONENTS (REMOVAL)
Procedure | Part Name Code | ||||
---|---|---|---|---|---|
1 | BACK DOOR INSIDE HANDLE BASE ASSEMBLY |
69290G | - |
- | - |
2 | BACK DOOR CONTROL SWITCH |
84931C | - |
- | - |
PROCEDURE
1. REMOVE BACK DOOR INSIDE HANDLE BASE ASSEMBLY
Click here

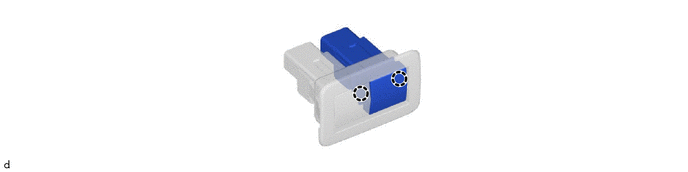

2. REMOVE BACK DOOR CONTROL SWITCH
Inspection
INSPECTION
PROCEDURE
1. INSPECT BACK DOOR CONTROL SWITCH
(a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the back door control switch. |
|
(b) Check that the LED illuminates.

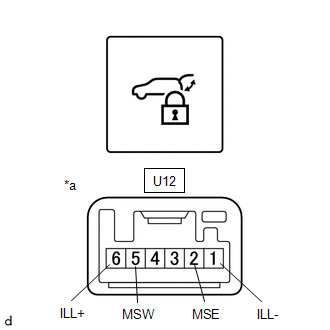

(1) Apply auxiliary battery voltage to the power back door main switch connector, and check that the back door control switch LED illuminates.
OK:
Measurement Condition | Specified Condition |
---|---|
Auxiliary battery positive (+) → U12-6 (ILL+) Auxiliary battery negative (-) → U12-1 (ILL-) |
LED illuminates |
If the result is not as specified, replace the back door control switch.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
Procedure | Part Name Code | ||||
---|---|---|---|---|---|
1 | BACK DOOR CONTROL SWITCH |
84931C | - |
- | - |
2 | BACK DOOR INSIDE HANDLE BASE ASSEMBLY |
69290G | - |
- | - |
PROCEDURE
1. INSTALL BACK DOOR CONTROL SWITCH
2. INSTALL BACK DOOR INSIDE HANDLE BASE ASSEMBLY
