Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

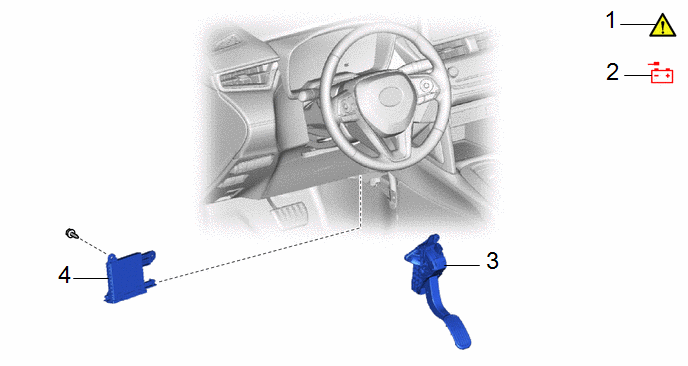

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | PRECAUTION |
- |
|
- | - |
|
2 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL |
- | - |
- | - |
|
3 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
78110K | - |
- | - |
|
4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
88650N | - |
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during air conditioning amplifier assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| *1: for Gasoline Model | |||
| Air conditioning amplifier assembly*1 |
| Engine start function |
|
|
Air conditioning amplifier assembly |
Initialize servo motor (Air Conditioning System) |
DTCs are stored | for Gasoline Model with Manual Air Conditioning System:
for Gasoline Model with Automatic Air Conditioning System:
for HEV Model:
|
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
*1: for Gasoline Model Front Camera System
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
.gif)
Stop and start system*1
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
- Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power back door system
Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. PRECAUTION
|
|
NOTICE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. |
2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for M20A-FKS:
Click here
- for M20A-FXS:
Click here
3. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
- for M20A-FKS:
Click here
- for M20A-FXS:
Click here

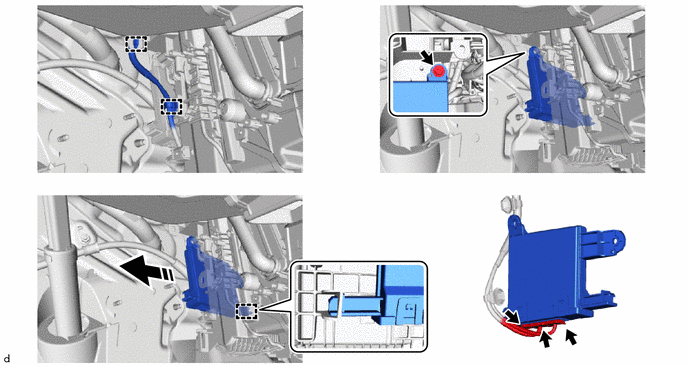

4. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
.png) |
Remove in this Direction |
- | - |
