Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

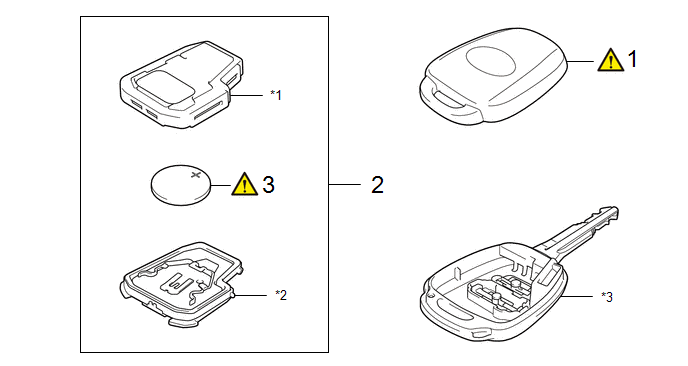

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | TRANSMITTER HOUSING COVER |
89751A |
|
- | - |
|
2 | DOOR CONTROL TRANSMITTER SUB-ASSEMBLY |
89071C | - |
- | - |
|
3 | TRANSMITTER BATTERY |
89745A |
|
- | - |
.gif)
|
*1 | TRANSMITTER BATTERY COVER |
*2 | TRANSMITTER BATTERY CASE |
|
*3 | TRANSMITTER HOUSING CASE |
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during door control transmitter assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Door control transmitter assembly |
Code registration | Register a new recognition code |
|
|
Register a new recognition code |
Wireless door lock control system (w/o Smart Key System) |
|
PROCEDURE
1. REMOVE TRANSMITTER HOUSING COVER

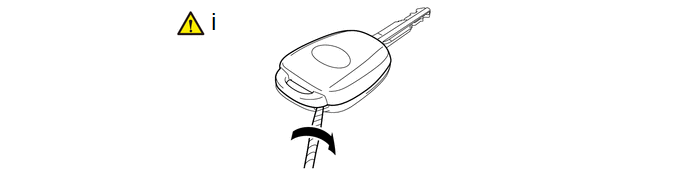

(1) Using a screwdriver with its tip wrapped in protective tape, remove the transmitter housing cover.
NOTICE:
Do not use excessive force when prying apart the transmitter housing cover.

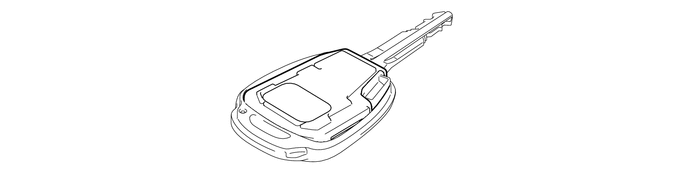

2. REMOVE DOOR CONTROL TRANSMITTER SUB-ASSEMBLY
3. REMOVE TRANSMITTER BATTERY
|
|
Click here |
