Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

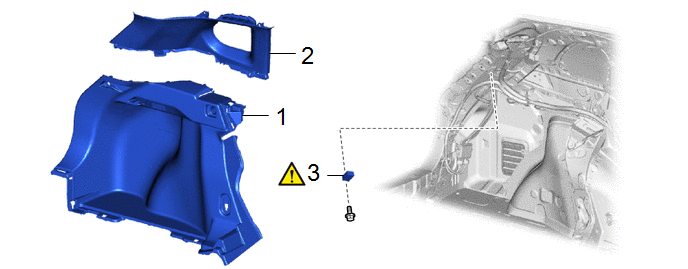

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

DECK TRIM SIDE PANEL ASSEMBLY LH

64740C

-

-

-

2

ROOF SIDE INNER GARNISH ASSEMBLY LH

62480A

-

-

-

3

DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY

897A0A

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the door control and tire pressure monitoring system receiver assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

w/o Smart Key System:
  • Door control and tire pressure monitoring system receiver assembly

Register a new recognition code

Engine start function

NOTICE:

After the ignition switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    *A: for Gasoline Model

    Front Camera System

    Drive the vehicle straight ahead at 15km/h (10 mph) or more for 1 second or more.

    Stop and start system *A

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click here

2. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

Click here

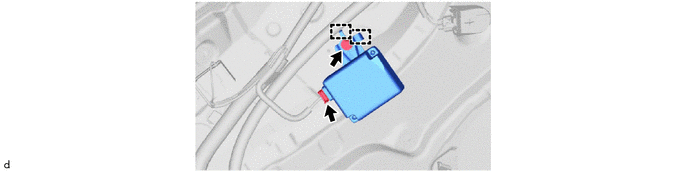

3. REMOVE DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY

NOTICE:

  • Do not drop, strike or otherwise subject the door control and tire pressure monitoring system receiver assembly to impact.
  • If the door control and tire pressure monitoring system receiver assembly is subjected to an impact, replace it with a new one.
