Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Door Lock / Back Door Lock / Removal

REMOVAL

CAUTION / NOTICE / HINT

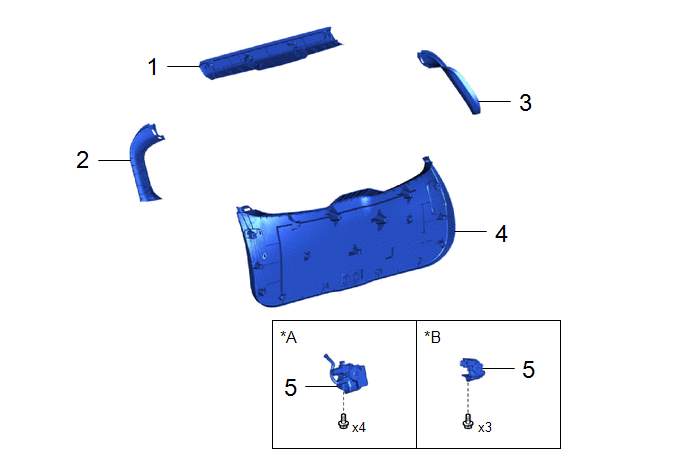

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR UPPER PANEL TRIM ASSEMBLY

64790B

-

-

-

2

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

3

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

4

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

5

BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

69350P

-

-

-

*A

w/ Power Back Door

*B

w/o Power Back Door

PROCEDURE

1. REMOVE BACK DOOR UPPER PANEL TRIM ASSEMBLY

Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

(a) Use the same procedure as for the LH side.

4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

Click here

5. REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

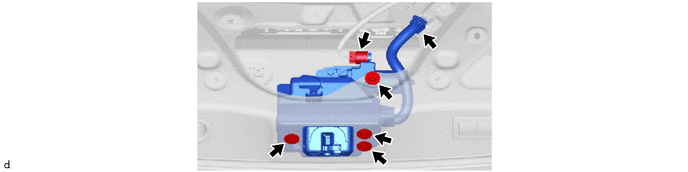

(a) w/ Power Back Door:

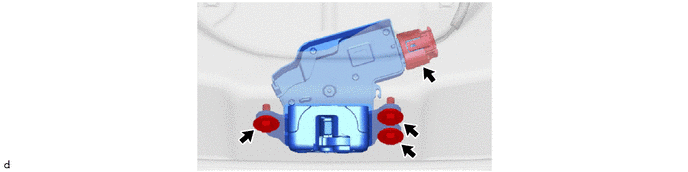

(b) w/o Power Back Door:
