Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

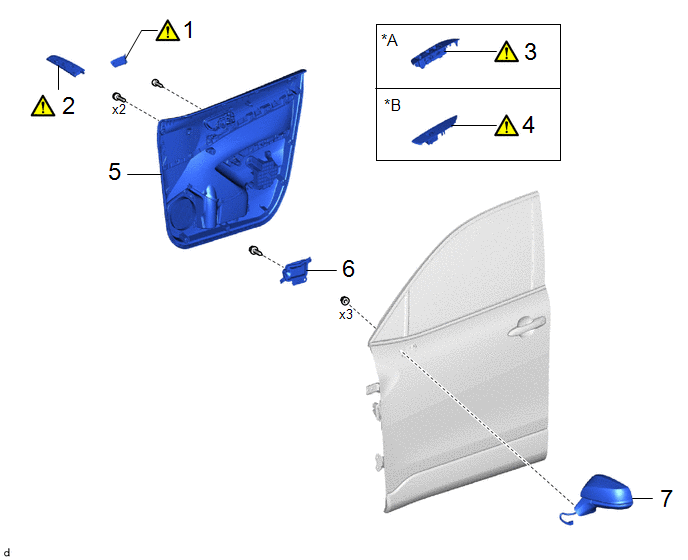

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
69284F |
|
- | - |
|
2 | DOOR ASSIST GRIP COVER |
74646 |
|
- | - |
|
3 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- |
|
- | - |
|
4 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- |
|
- | - |
|
5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
67602 | - |
- | - |
|
6 | OUTER MIRROR INSTALL HOLE COVER |
87964 | - |
- | - |
|
7 | OUTER REAR VIEW MIRROR ASSEMBLY |
87940 | - |
- | - |
|
*A | for Driver Side |
*B | for Front Passenger Side |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.
PROCEDURE
1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
|
|
Click here |
2. REMOVE DOOR ASSIST GRIP COVER
|
|
Click here |
3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
|
|
Click here |
4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
|
|
Click here |
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here .gif)

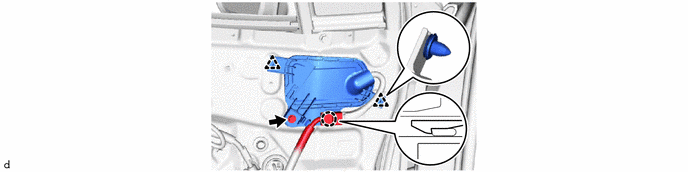

6. REMOVE OUTER MIRROR INSTALL HOLE COVER

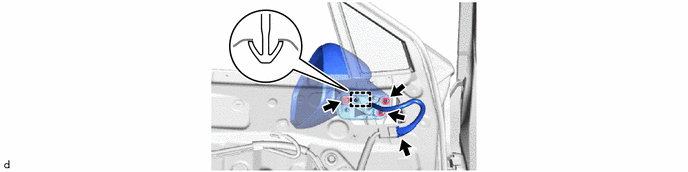

7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
