Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Fog Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

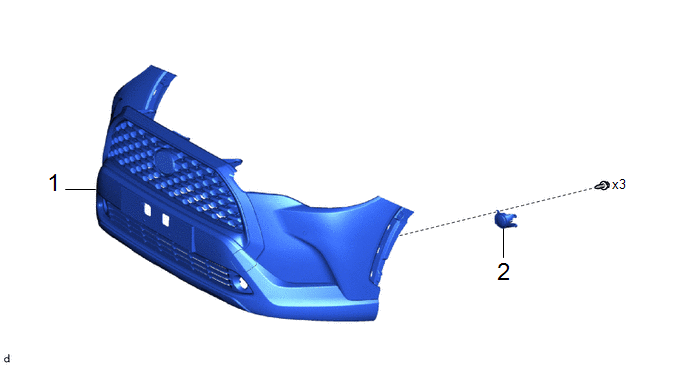

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT BUMPER ASSEMBLY

-

-

-

-

2

FOG LIGHT ASSEMBLY

81220

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here

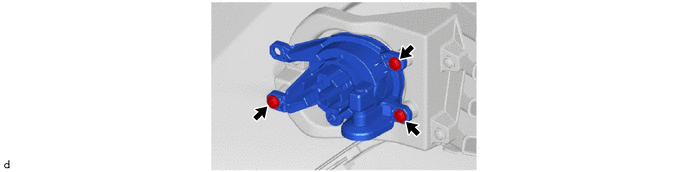

2. REMOVE FOG LIGHT ASSEMBLY
