Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Wheel Opening Moulding (for Rear) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

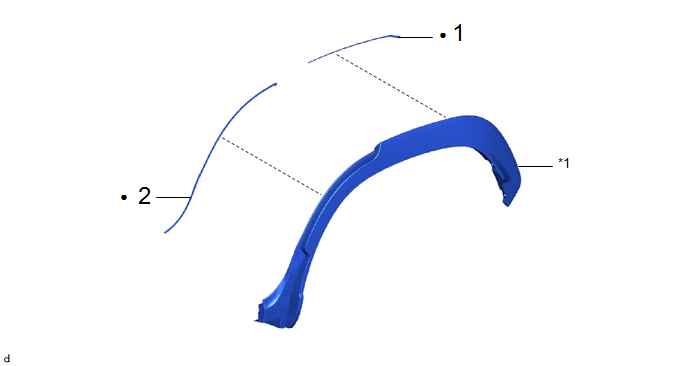

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

NO. 1 BODY OUTSIDE MOULDING PAD

75696

-

-

-

2

NO. 2 BODY OUTSIDE MOULDING PAD

75697

-

-

-

*1

QUARTER OUTSIDE MOULDING

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

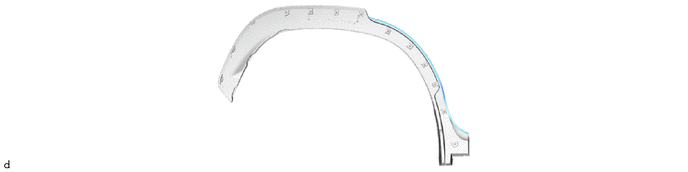

1. REMOVE NO. 1 BODY OUTSIDE MOULDING PAD

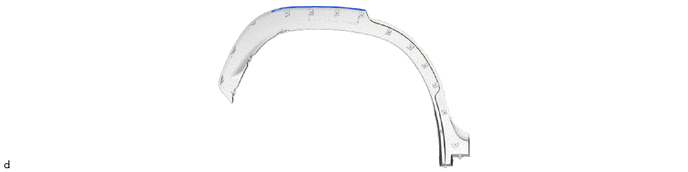

2. REMOVE NO. 2 BODY OUTSIDE MOULDING PAD
