Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

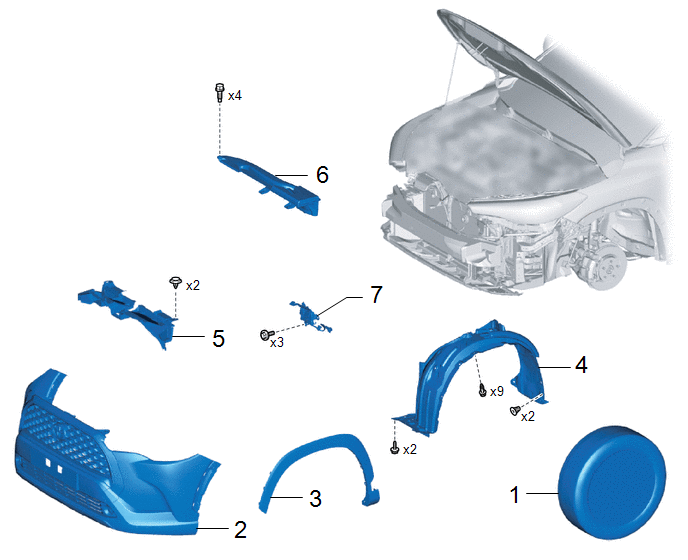

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT WHEEL LH |
- | - |
- | - |
|
2 | FRONT BUMPER ASSEMBLY |
- | - |
- | - |
|
3 | FRONT FENDER MOULDING SUB-ASSEMBLY LH |
75602A | - |
- | - |
|
4 | FRONT FENDER LINER LH |
53876A | - |
- | - |
|
5 | NO. 1 RADIATOR TO SUPPORT SEAL |
16561C | - |
- | - |
|
6 | INLET NO. 1 AIR CLEANER |
17751 | - |
- | - |
|
7 | HOOD LOCK ASSEMBLY |
53510 | - |
- | - |
|

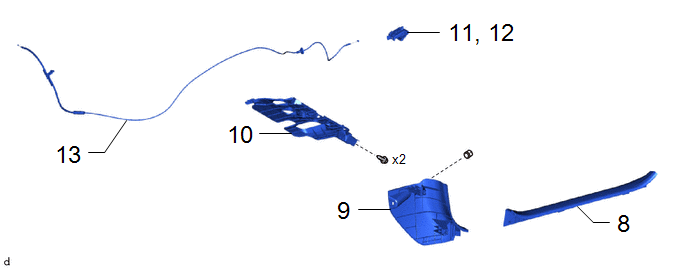

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
8 | FRONT DOOR SCUFF PLATE LH |
67914B | - |
- | - |
|
9 | COWL SIDE TRIM SUB-ASSEMBLY LH |
62112A | - |
- | - |
|
10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
55606 | - |
- | - |
|
11 | DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
53601 | - |
- | - |
|
12 | REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
53601 | - |
- | - |
|
13 | HOOD LOCK CONTROL CABLE ASSEMBLY |
53630 | - |
- | - |
PROCEDURE
1. REMOVE FRONT WHEEL LH
Click here .gif)
2. REMOVE FRONT BUMPER ASSEMBLY
- for Sport Package:
Click here
- except Sport Package:
Click here
3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH
Click here
4. SEPARATE FRONT FENDER LINER LH
(a) Use the same procedure as for the RH side.
Click here
5. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL
Click here
6. REMOVE INLET NO. 1 AIR CLEANER
Click here

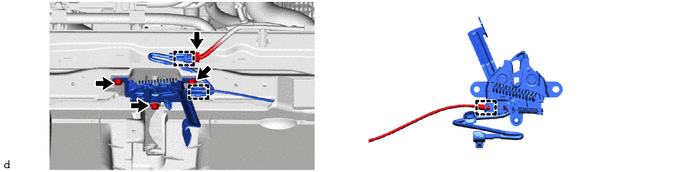

7. REMOVE HOOD LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
8. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Click here
10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here

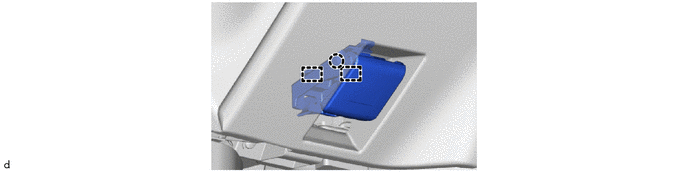

11. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

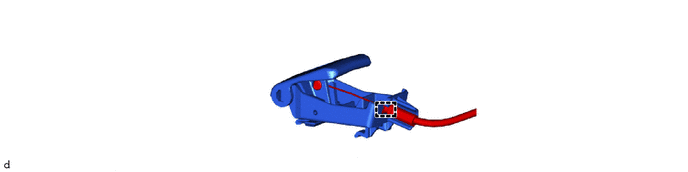

12. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

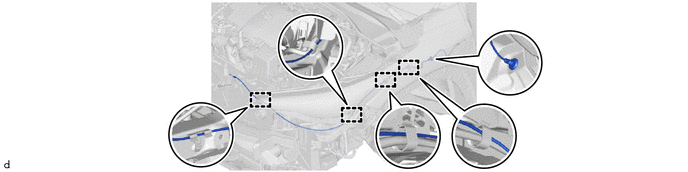

13. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
