Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

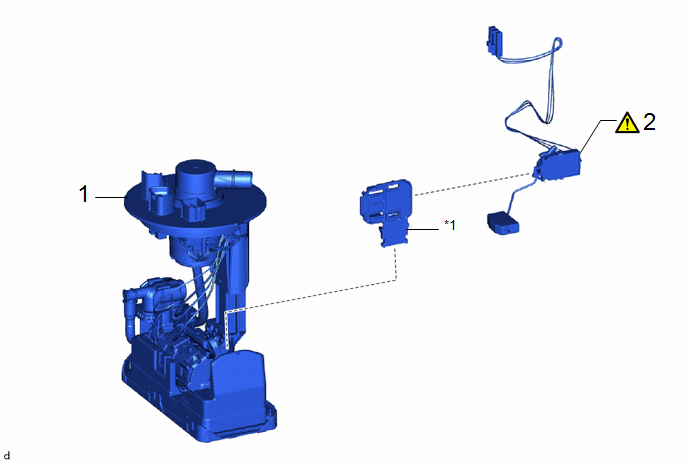

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

77020A

-

-

-

2

FUEL SENDER GAUGE ASSEMBLY

83320

-

-

*1

FUEL GAUGE BRACKET

-

-

CAUTION / NOTICE / HINT

CAUTION:

  • Never perform work on fuel system components near any possible ignition sources.
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

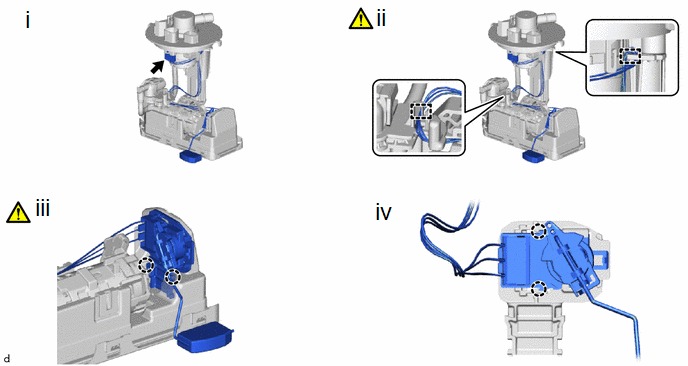

2. REMOVE FUEL SENDER GAUGE ASSEMBLY

(1) Disconnect the fuel sender gauge assembly connector.

(2) Disengage the 2 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.

NOTICE:

  • Do not damage the wire harness.
  • When disengaging each wire harness from the clamp, disengage one wire at a time.

(3) Disengage the 2 claws to remove the fuel gauge bracket with fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.

NOTICE:

Be careful not to bend the arm of the fuel sender gauge assembly.

(4) Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
