Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / M20a-fxs (emission Control) / Fuel Vapor Containment Valve / Removal

REMOVAL

CAUTION / NOTICE / HINT

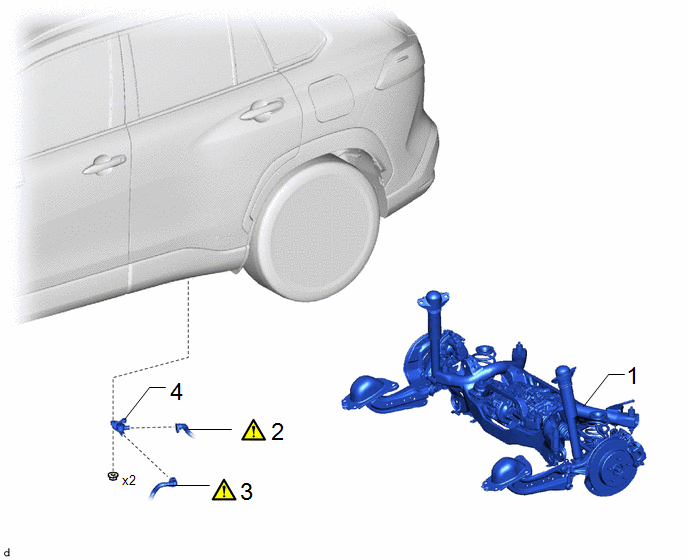

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR SUSPENSION MEMBER SUB-ASSEMBLY

51206A

-

-

-

2

NO. 2 FUEL TANK VENT HOSE SUB-ASSEMBLY

77404B

-

-

3

FUEL TANK VENT HOSE SUB-ASSEMBLY

77404A

-

-

4

FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)

77070A

-

-

-

PROCEDURE

1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

Click here

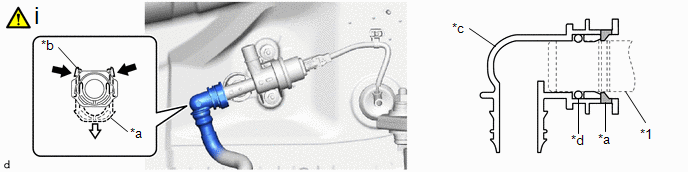

2. DISCONNECT NO. 2 FUEL TANK VENT HOSE SUB-ASSEMBLY

*1

Pipe (Fuel Vapor Containment Valve (Fuel Tank Solenoid Main Valve Assembly))

-

-

*a

Retainer

*b

Tab

*c

Tube Connector

*d

O-ring

Pinch

Pull

(1) Disconnect the No. 2 fuel tank vent hose sub-assembly from the fuel vapor containment valve (fuel tank solenoid main valve assembly).

Click here

NOTICE:

  • Remove any dirt or foreign matter on the tube connectors before performing this work.
  • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connectors have an O-ring that seals the pipe.
  • Perform this work by hand. Do not use any tools.
  • Do not forcibly bend, twist or turn the No. 2 fuel tank vent hose sub-assembly.
  • Protect the disconnected parts by covering them with plastic bags after disconnecting the No. 2 fuel tank vent hose sub-assembly.
  • If the tube connector and pipe are stuck, push and pull to release them.

HINT:

Do not remove the retainer.

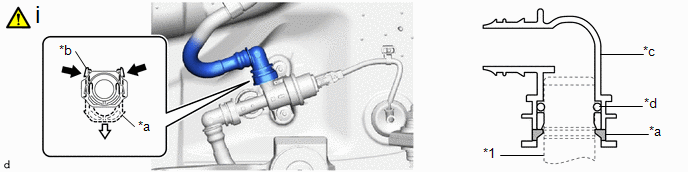

3. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

*1

Pipe (Fuel Vapor Containment Valve (Fuel Tank Solenoid Main Valve Assembly))

-

-

*a

Retainer

*b

Tab

*c

Tube Connector

*d

O-ring

Pinch

Pull

(1) Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (fuel tank solenoid main valve assembly).

Click here

NOTICE:

  • Remove any dirt or foreign matter on the tube connectors before performing this work.
  • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connectors have an O-ring that seals the pipe.
  • Perform this work by hand. Do not use any tools.
  • Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly.
  • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose sub-assembly.
  • If the tube connector and pipe are stuck, push and pull to release them.

HINT:

Do not remove the retainer.

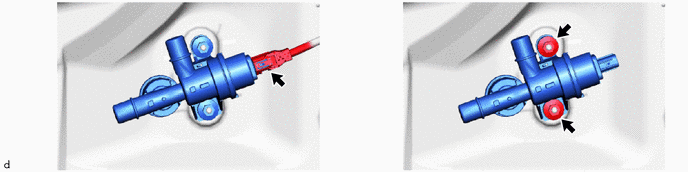

4. REMOVE FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)
