Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (intake / Exhaust) / Exhaust Pipe (for 2wd) / Removal

REMOVAL

CAUTION / NOTICE / HINT

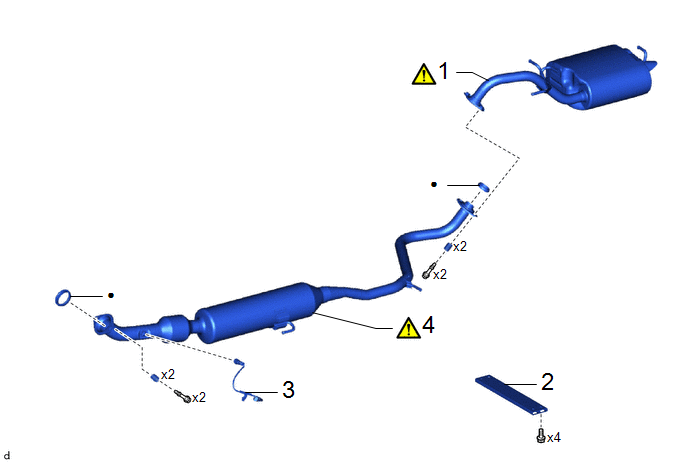

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

TAIL EXHAUST PIPE ASSEMBLY

17430

-

-

2

FRONT FLOOR CENTER BRACE

57533B

-

-

-

3

AIR FUEL RATIO SENSOR

89467C

-

-

-

4

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

17410

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front exhaust pipe assembly (TWC: Rear Catalyst) and tail exhaust pipe assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Replacement of air fuel ratio sensor (sensor 2)
  • Gas leak from exhaust system is repaired

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

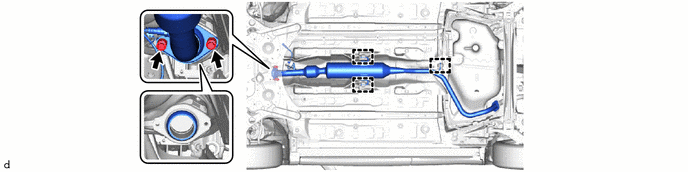

1. REMOVE TAIL EXHAUST PIPE ASSEMBLY

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

2. REMOVE FRONT FLOOR CENTER BRACE

Click here

3. REMOVE AIR FUEL RATIO SENSOR

Click here

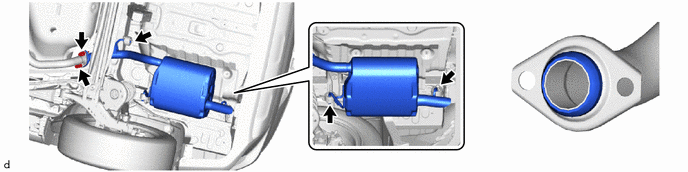

4. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
