Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

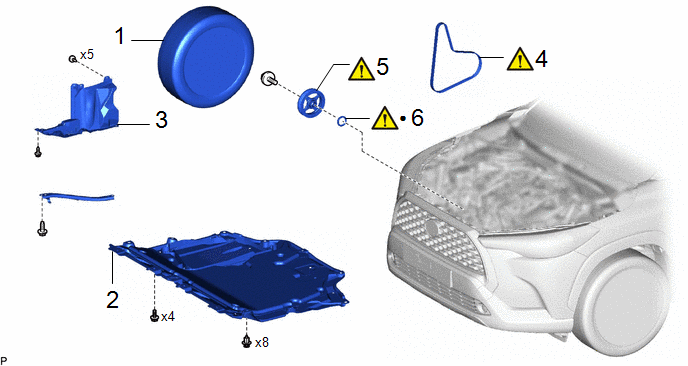

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT WHEEL RH |
- | - |
- | - |
|
2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
51410 | - |
- | - |
|
3 | REAR ENGINE UNDER COVER RH |
51443C | - |
- | - |
|
4 | V-RIBBED BELT |
16361A |
|
- | - |
|
5 | CRANKSHAFT PULLEY ASSEMBLY |
13470 |
|
- | - |
|
6 | TIMING CHAIN COVER OIL SEAL |
11301C |
|
- | - |
|
● | Non-reusable part |
- | - |
PROCEDURE
1. REMOVE FRONT WHEEL RH
Click here .gif)
2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
3. REMOVE REAR ENGINE UNDER COVER RH
Click here
4. REMOVE V-RIBBED BELT
|
|
Click here |
5. REMOVE CRANKSHAFT PULLEY ASSEMBLY
|
|
Click here |
6. REMOVE TIMING CHAIN COVER OIL SEAL

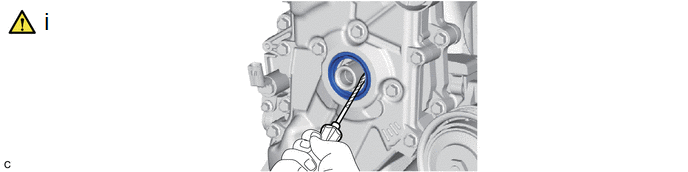

(1) Using a screwdriver, pry out the timing chain cover oil seal.
NOTICE:
Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.
HINT:
Tape the screwdriver tip before use.
