Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

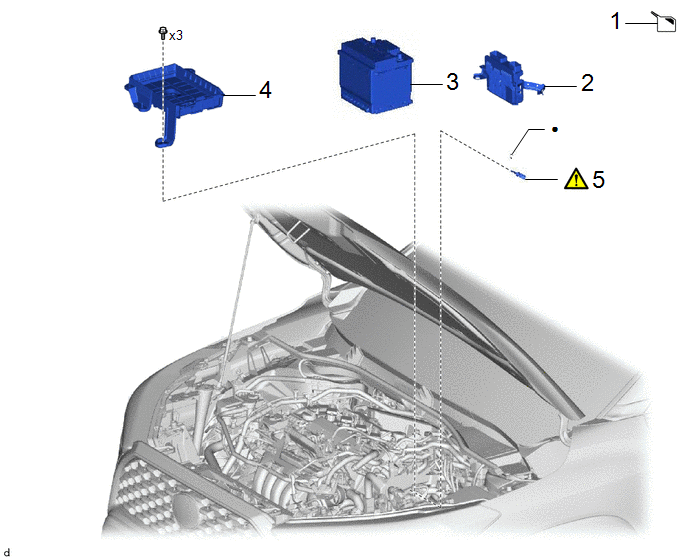

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | DRAIN ENGINE COOLANT |
- | - |
|
- |
| 2 |
ECM | 89661 |
- | - |
- |
| 3 |
AUXILIARY BATTERY | - |
- | - |
- |
| 4 |
AUXILIARY BATTERY CLAMP SUB-ASSEMBLY |
74404A | - |
- | - |
|
5 | ENGINE COOLANT TEMPERATURE SENSOR |
89422A |
|
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
NOTICE:
After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven.
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front camera system
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
.gif)
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
- Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power back door system
Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. DRAIN ENGINE COOLANT
Click here
2. REMOVE ECM
Click here
3. REMOVE AUXILIARY BATTERY
Click here
4. REMOVE AUXILIARY BATTERY CLAMP SUB-ASSEMBLY
Click here

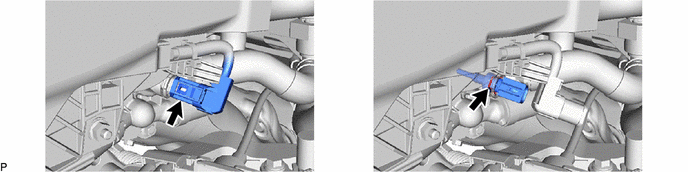

5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
|
|
NOTICE: If the engine coolant temperature sensor has been struck or dropped, replace it. |
