Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

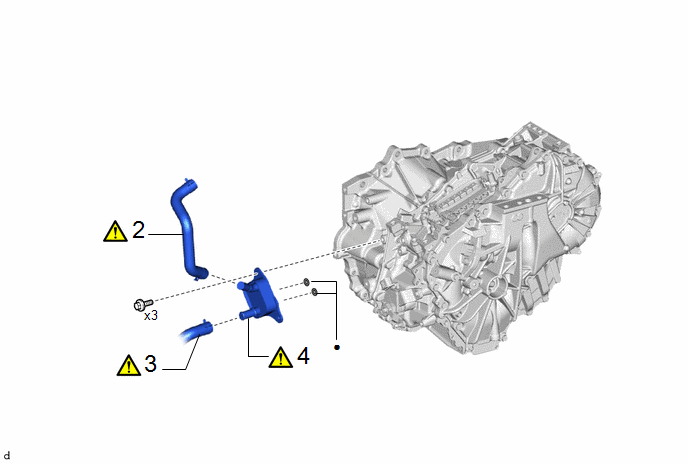

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

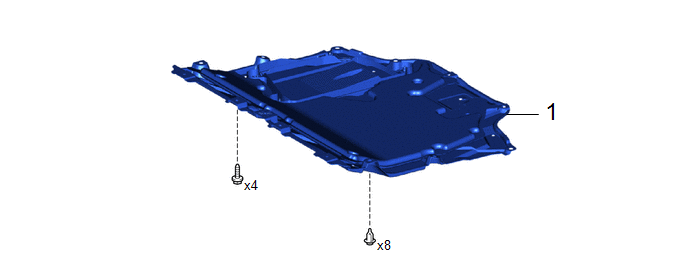

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

Procedure

Part Name Code

2

NO. 1 INVERTER COOLING OUTLET HOSE

G922C

-

-

3

NO. 2 INVERTER COOLING OUTLET HOSE

G922D

-

-

4

MOTOR COOLING COOLER

G125AA

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during motor cooling cooler removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of inverter with converter assembly

Resolver learning

  • DTCs are stored
  • Slight vibration at a vehicle speed of 5 km/h (3 mph) or less
  • Shock or vibration during acceleration

CAUTION:

  • This vehicle has contains high voltage circuits standardized with orange colored wiring and connectors, so follow the instructions in this manual to perform the procedures correctly.

    Click here

  • If the correct procedures are not followed according to the instructions in this manual, there is a danger of electric shock from the high voltage circuits.
  • Be sure to wear insulating gloves when working on high voltage wiring or components.
  • If work is performed without wearing insulating gloves, there is a danger of electric shock.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 5 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

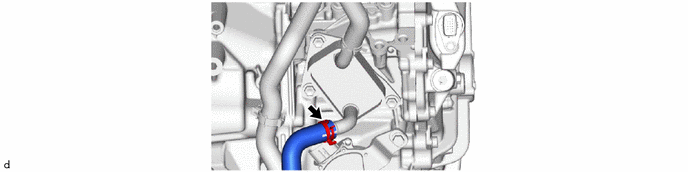

2. REMOVE NO. 1 INVERTER COOLING OUTLET HOSE

HINT:

After disconnecting the motor cooling hoses, in order to prevent the scattering of the coolant into the surrounding parts and the contamination of foreign matter into the coolant path, the cooling pipes and the hoses are plugged with a hose plug or wrapped in a plastic bag etc.

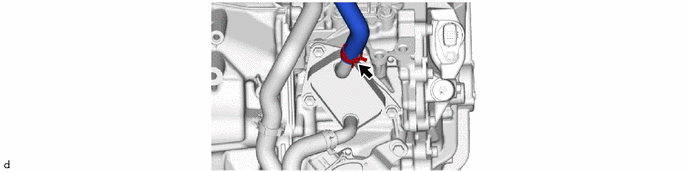

3. REMOVE NO. 2 INVERTER COOLING OUTLET HOSE

HINT:

After disconnecting the motor cooling hoses, in order to prevent the scattering of the coolant into the surrounding parts and the contamination of foreign matter into the coolant path, the cooling pipes and the hoses are plugged with a hose plug or wrapped in a plastic bag etc.

4. REMOVE MOTOR COOLING COOLER

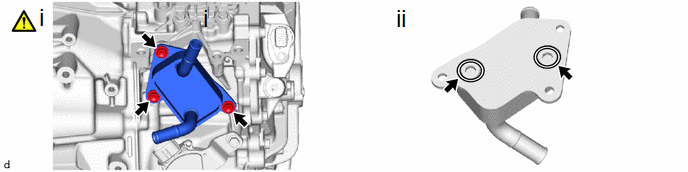

(1) Remove the 3 bolts and motor cooling cooler from the hybrid vehicle transaxle assembly.

(2) Remove the 2 O-rings.
