Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

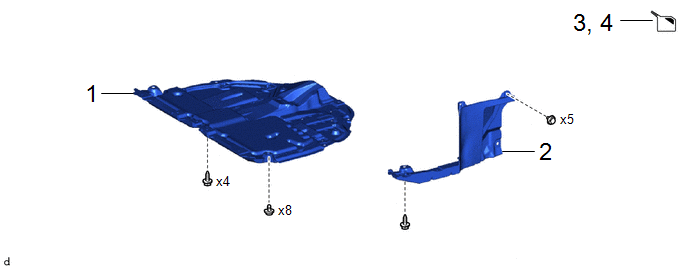

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

2

REAR ENGINE UNDER COVER LH

51444A

-

-

-

3

DRAIN ENGINE COOLANT

-

-

-

4

DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

-

-

-

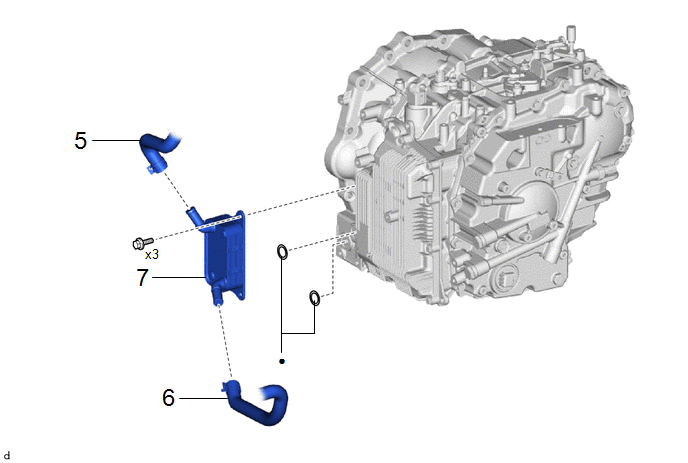

Procedure

Part Name Code

5

INLET WATER HOSE

16262

-

-

-

6

NO. 2 WATER BY-PASS HOSE

16264D

-

-

-

7

TRANSMISSION OIL COOLER

33493C

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transmission oil cooler removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

CVT fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

Bleed air from oil pump (continuously variable transaxle assembly)

Stop and start system

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. REMOVE REAR ENGINE UNDER COVER LH

Click here

3. DRAIN ENGINE COOLANT

Click here

4. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Click here

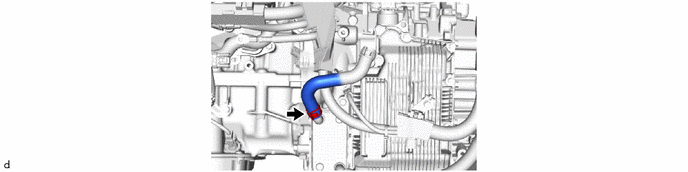

5. DISCONNECT INLET WATER HOSE

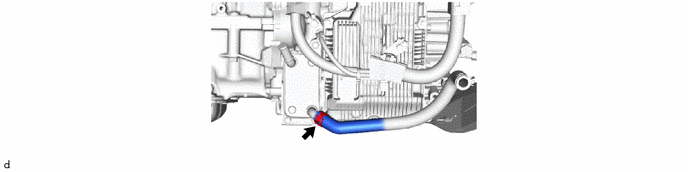

6. DISCONNECT NO. 2 WATER BY-PASS HOSE

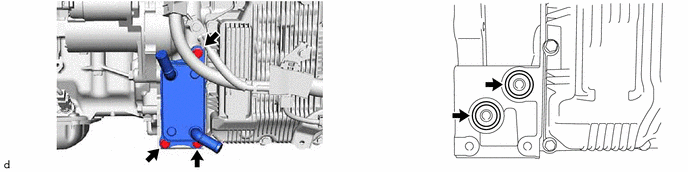

7. REMOVE TRANSMISSION OIL COOLER
