REMOVAL

CAUTION / NOTICE / HINT

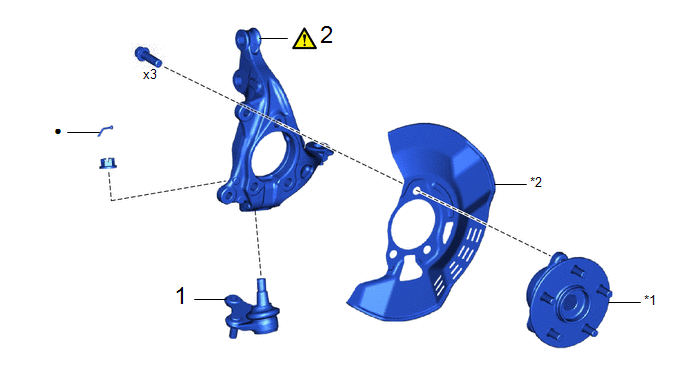

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT LOWER BALL JOINT ASSEMBLY

43340A

-

-

-

2

STEERING KNUCKLE

43212

-

-

*1

FRONT AXLE HUB SUB-ASSEMBLY

*2

FRONT DISC BRAKE DUST COVER

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the steering knuckle removal/installation are shown below.

Necessary Procedures After Procedure Performed

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Front wheel alignment adjustment

 for HEV Model:
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

for Gasoline Model:
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

for Gasoline Model AWD:
  • Perform "Reset Memory"

Dynamic torque control AWD system

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking Assist Monitor System

Initialize headlight ECU subassembly LH

Automatic headlight beam level control system

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT LOWER BALL JOINT ASSEMBLY

Click here

2. REMOVE STEERING KNUCKLE

(1) Secure the front axle assembly between aluminum plates in a vise.

NOTICE:

Do not overtighten the vise.

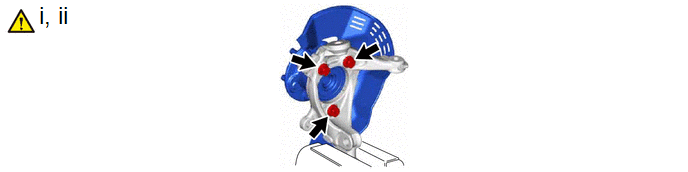

(2) Remove the 3 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.

NOTICE:

  • Do not drop the front axle hub sub-assembly.
  • Be careful not to damage the speed sensor rotor or contact surfaces.
  • Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
