REMOVAL
CAUTION / NOTICE / HINT

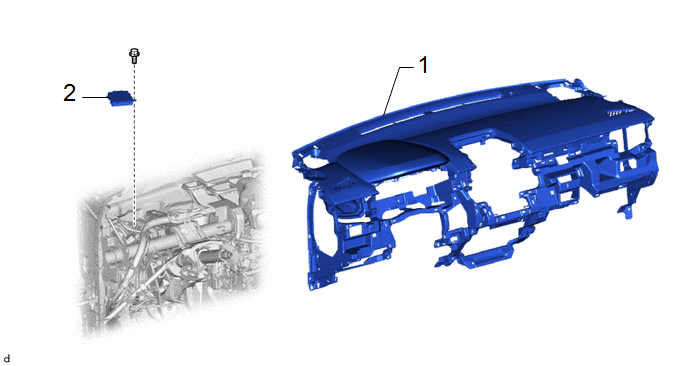

COMPONENTS (REMOVAL)
Procedure |
Part Name Code |
||||
---|---|---|---|---|---|
1 |
INSTRUMENT PANEL SAFETY PAD ASSEMBLY |
- |
- |
- |
- |
2 |
CLEARANCE WARNING ECU ASSEMBLY |
89340A |
- |
- |
- |

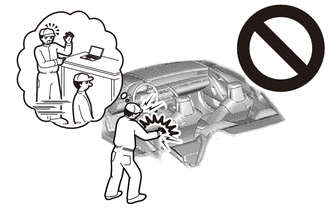

CAUTION / NOTICE / HINT
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Click here
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the clearance warning ECU assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
---|---|---|---|
Clearance warning ECU assembly |
Update ECU security key |
Vehicle control history (RoB) are stored |
|
|
|
|
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
---|---|---|
*1: for Gasoline Model | ||
Front Camera System |
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. |
|
Stop and start system*1 |
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) |
|
Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
---|---|---|
Power door lock control system
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
|
Power back door system |
Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed. |
|
Air conditioning system |
After the ignition switch is turned to ON, the servo motor standard position is recognized. |
- |
PROCEDURE
1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
Click here

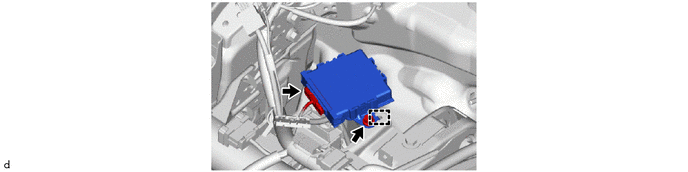

2. REMOVE CLEARANCE WARNING ECU ASSEMBLY
