Toyota Corolla Cross: Push Start Switch Illumination Circuit

DESCRIPTION

The illuminated entry system controls the push start switch illumination.

WIRING DIAGRAM

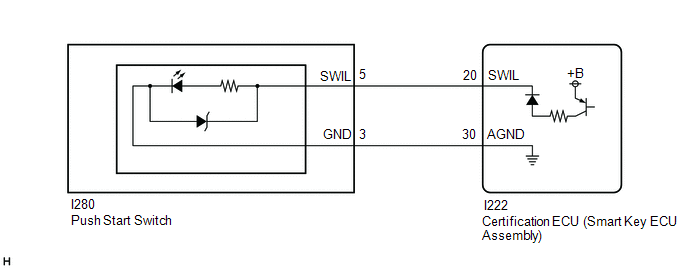

for HEV Model

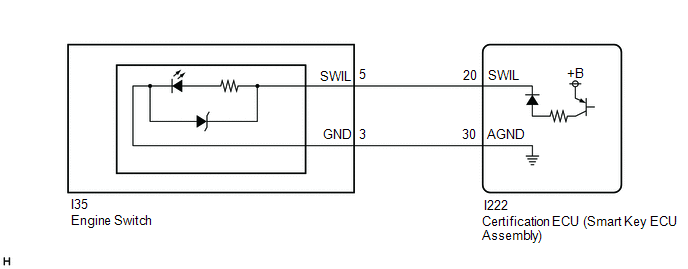

for Gasoline Model

CAUTION / NOTICE / HINT

NOTICE:

Before replacing the certification ECU (smart key ECU assembly), refer to Registration.*1

for HEV Model: Click here

for Gasoline Model: Click here

  • *1: w/ Smart Key System

PROCEDURE

1.

CHECK VEHICLE TYPE

(a) Check vehicle type.

Result

Proceed to

for HEV Model

A

for Gasoline Model

B

B

GO TO STEP 5

A

2.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Smart Key > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Start SW Light Power Supply

Push start switch illumination

OFF or ON

-

Body Electrical > Smart Key > Active Test

Tester Display

Start SW Light Power Supply

OK:

Push start switch illumination comes on.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

3.

INSPECT PUSH START SWITCH

Click here

NG

REPLACE PUSH START SWITCH

OK

4.

CHECK HARNESS AND CONNECTOR (PUSH START SWITCH - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

(a) Disconnect the I222 certification ECU (smart key ECU assembly) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I280-5 (SWIL) - I222-20 (SWIL)

Always

Below 1 Ω

I280-3 (GND) - I222-30 (AGND)

Always

Below 1 Ω

I280-5 (SWIL) or I222-20 (SWIL) - Body ground

Always

10 kΩ or higher

I280-3 (GND) or I222-30 (AGND) - Body ground

Always

10 kΩ or higher

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Smart Key > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Start SW Light Power Supply

Push start switch illumination

OFF or ON

-

Body Electrical > Smart Key > Active Test

Tester Display

Start SW Light Power Supply

OK:

Push start switch illumination comes on.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

6.

INSPECT PUSH START SWITCH

Click here

NG

REPLACE PUSH START SWITCH

OK

7.

CHECK HARNESS AND CONNECTOR (PUSH START SWITCH - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

(a) Disconnect the I222 certification ECU (smart key ECU assembly) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I35-5 (SWIL) - I222-20 (SWIL)

Always

Below 1 Ω

I35-3 (GND) - I222-30 (AGND)

Always

Below 1 Ω

I35-5 (SWIL) or I222-20 (SWIL) - Body ground

Always

10 kΩ or higher

I35-3 (GND) or I222-30 (AGND) - Body ground

Always

10 kΩ or higher

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
