Toyota Corolla Cross: Precaution

PRECAUTION

TROUBLESHOOTING PRECAUTIONS

(a) When inspecting the rear brakes, disconnect the connector or disconnect the cable from the negative (-) auxiliary battery terminal in order to shut off the supply of electrical power.

CAUTION:

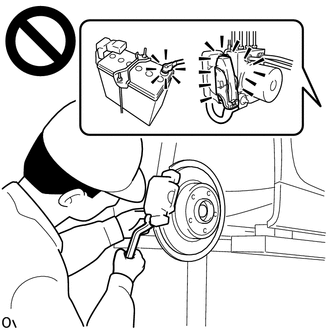

  • Do not perform the rear brake inspection while either the connector or the negative (-) auxiliary battery terminal are connected.
  • The rear disc brake piston could operate, resulting in an accident such as hands being caught.

(b) The electric parking brake may still operate for 20 seconds* after the ignition switch is turned off.

  • *: The electric parking brake may still operate up to 60 minutes depending on the state of the vehicle after the ignition switch is turned off, so be sure to perform the work procedures with the vehicle on a level surface.

(c) When any parts have been removed or installed, check for DTCs after completion of installation to confirm that the system is operating correctly.

HINT:

After performing work procedures such as installation, if the parking brake indicator light (red) is blinking, the parking brake must be released.

HANDLING PRECAUTIONS

(a) When tilting the vehicle to perform work after parking the vehicle on a level surface, the braking force may not be sufficient. Make sure to pull the electric parking brake switch (electric parking brake switch assembly) to the lock side 2 times (2 lock operations).

HINT:

  • The electric parking brake system determines the amount of force used to operate the parking brake according to the tilt angle detected by the deceleration sensor (airbag ECU assembly).
  • When the parking brake indicator (red) is illuminated after the electric parking brake switch (electric parking brake switch assembly) has been pulled to the lock side, the maximum amount of braking force is applied if the electric parking brake switch (electric parking brake switch assembly) is pulled to the lock side one more time.

(b) The parking brake indicator light blinks (red) when the ignition switch is turned to ON after replacing the skid control ECU (brake actuator assembly). Operate the electric parking brake switch (electric parking brake switch assembly) to turn off the parking brake indicator light.

PRECAUTIONS FOR TOWING VEHICLES

(a) For towing precautions: Click here

PARKING BRAKE FORCED RELEASE METHOD

(a) For the parking brake forced release method: Click here
