Toyota Corolla Cross: Parts Location
PARTS LOCATION

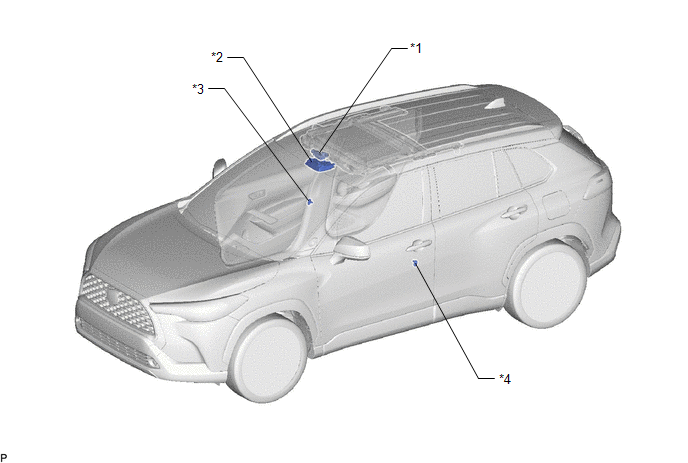

ILLUSTRATION
|
*1 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) |
*2 | SLIDING ROOF SWITCH (MAP LIGHT ASSEMBLY) |
|
*3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
*4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |

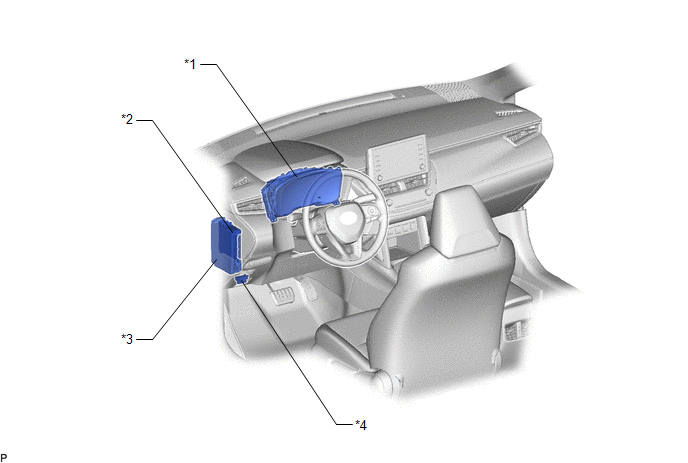

ILLUSTRATION
|
*1 | COMBINATION METER ASSEMBLY |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
|
*3 | POWER DISTRIBUTION BOX ASSEMBLY - S/ROOF FUSE | *4 |
DLC3 |
