Toyota Corolla Cross: On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
(a) for LH Side:
(1) Operate the windshield wiper motor assembly.
(2) Stop the windshield wiper motor assembly operation.
| (3) Check the automatic stop (park) position. HINT: After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.
Standard Clearance: |
Area | Measurement | |
A | 10 mm (0.394 in.) |

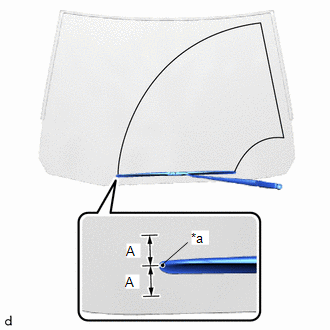

OK: The wiper blade stops at the position shown in the illustration. |
|
(b) for RH Side:
(1) Operate the windshield wiper motor assembly.
(2) Stop the windshield wiper motor assembly operation.
| (3) Check the automatic stop (park) position. HINT: After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.
Standard Clearance: |
Area | Measurement | |
A | 10 mm (0.394 in.) |

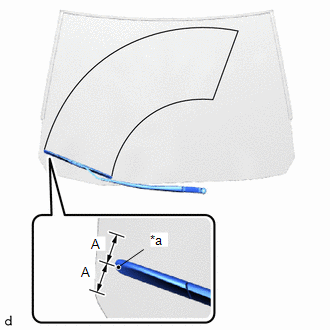

OK: The wiper blade stops at the position shown in the illustration. |
|
