Toyota Corolla Cross: M20a-fxs Air Cleaner Filter Element

Toyota Corolla Cross (2022-2024) Service Manual / General / Maintenance / M20a-fxs Air Cleaner Filter Element

Removal

REMOVAL

CAUTION / NOTICE / HINT

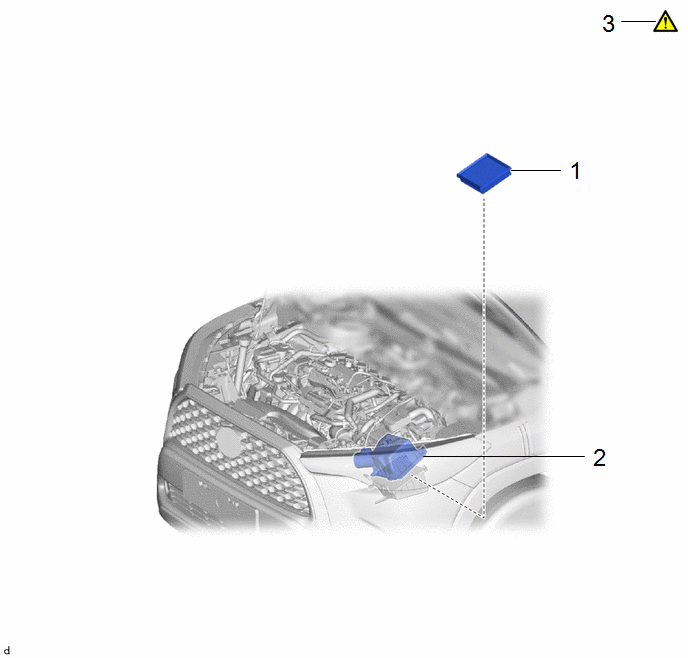

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

AIR CLEANER CAP SUB-ASSEMBLY

17705

-

-

-

2

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

17801

-

-

-

3

INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

17801

-

-

PROCEDURE

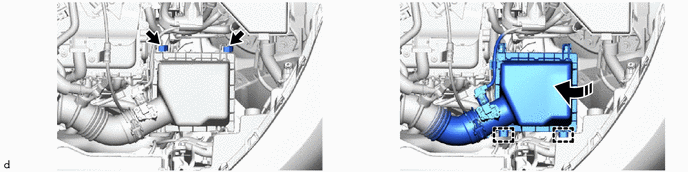

1. SEPARATE AIR CLEANER CAP SUB-ASSEMBLY

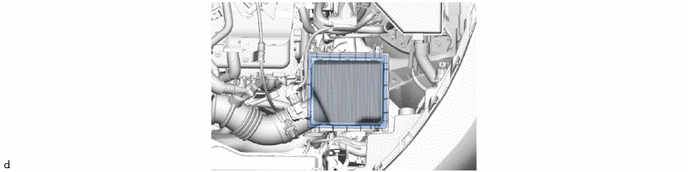

2. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

3. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

HINT:

This procedure is only performed when the air cleaner filter element sub-assembly will be reused.

*a

Air Cleaner Filter Element Sub-assembly Intake Downstream Side (Air Cleaner Cap Sub-assembly Side)

-

-

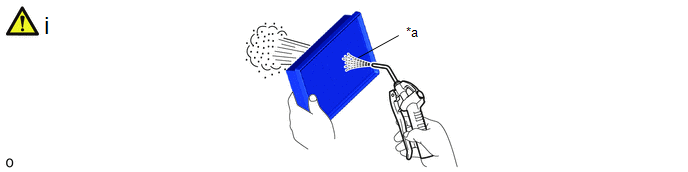

(1) If the air cleaner filter element sub-assembly is dirty or has foreign matter adhered to it, clean the air cleaner filter element sub-assembly with compressed air.

NOTICE:

When cleaning the air cleaner filter element sub-assembly, blow the compressed air from the intake downstream side (from the air cleaner cap sub-assembly side).

(2) If the air cleaner filter element sub-assembly is still extremely dirty after cleaning it, replace the air cleaner filter element sub-assembly with a new one.
