Toyota Corolla Cross: Left Curtain Deployment Control 1 Circuit Resistance Below Threshold (B00211A)

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Supplemental Restraint Systems / Airbag System / Left Curtain Deployment Control 1 Circuit Resistance Below Threshold (B00211A)

DESCRIPTION

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Warning Indicate

Test Mode / Check Mode

B00211A

Left Curtain Deployment Control 1 Circuit Resistance Below Threshold

One of the following conditions is met:

  • The airbag ECU assembly detects a line short in the curtain shield squib LH circuit for 2 seconds during the primary check.
  • Curtain shield squib LH (curtain shield airbag assembly LH) malfunction
  • Airbag ECU assembly malfunction
  • Harness or connector
  • Curtain shield squib LH (Curtain shield airbag assembly LH)
  • Airbag ECU assembly

Comes on

Applies to check mode

DTC Detection Conditions:


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Diagnosis Condition

During the primary check

Malfunction Status

The airbag ECU assembly detects a line short in the curtain shield squib LH circuit

-

-

Curtain shield squib LH (curtain shield airbag assembly LH) malfunction

-

-

Airbag ECU assembly malfunction

-

-

Detection Time

2 seconds

2 seconds

2 seconds

Number of Trips

1 trip

1 trip

1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

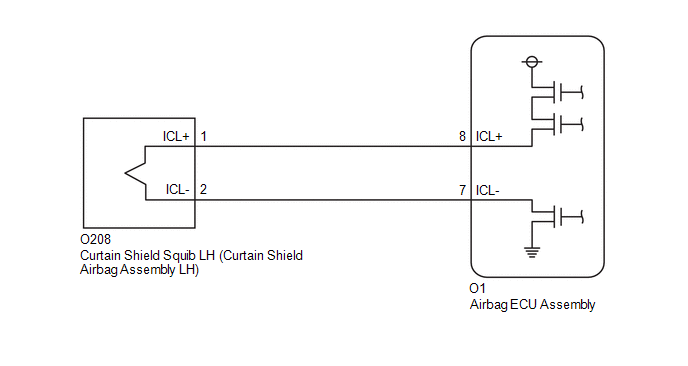

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click here

HINT:

  • When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

  • To perform the simulation method, select Check Mode with the GTS.

    Click here

  • Perform the simulation method while checking the Data List.

    Click here

PROCEDURE

1.

CHECK CURRENT DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result

Proceed to

Current B00211A is output

A

Current B00211A is not output

B

B

USE SIMULATION METHOD TO CHECK

Click here

HINT:

  • Perform the simulation method by selecting Check Mode using the GTS.

    Click here

  • Perform the simulation method while checking the Data List.

    Click here

A

2.

CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the curtain shield airbag assembly LH and airbag ECU assembly.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS PROPERLY

OK

3.

CHECK CONNECTORS

(a) Disconnect the connectors from the curtain shield airbag assembly LH and airbag ECU assembly.

(b) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals of the connectors are not deformed or damaged.

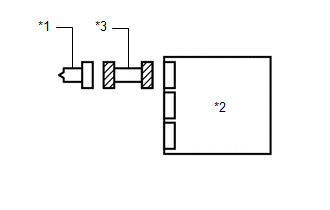

*1

Curtain Shield Airbag Assembly LH

*2

Airbag ECU Assembly

*3

Wire Harness

(c) Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.

(d) Check that the wire harness connector (on the curtain shield airbag assembly LH side) is not loose, deformed or damaged.

OK:

The airbag connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CLEAR DTC

(a) Connect the connector to the airbag ECU assembly.

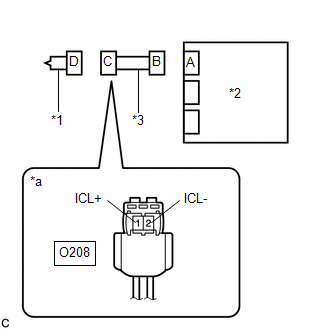

*1

Curtain Shield Airbag Assembly LH

*2

Airbag ECU Assembly

*3

Wire Harness

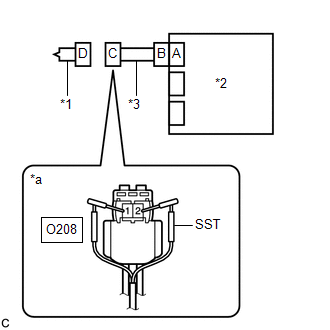

*a

Front view of wire harness connector

(to Curtain Shield Airbag Assembly LH)

(b) Connect the white wire side of SST (resistance 2.1 Ω) to connector C.

CAUTION:

Never connect a tester to the curtain shield airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:

  • Do not forcibly insert SST into the terminals of the connector when connecting it.
  • Insert SST straight into the terminals of the connector.

SST: 09843-18061

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

NEXT

5.

CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result

Proceed to

B00211A is not output

A

B00211A is output

B

HINT:

Codes other than DTC B00211A may be output at this time, but they are not related to this check.

(c) Turn the ignition switch off.

(d) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(e) Disconnect SST from connector C.

A

REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH

B

6.

CHECK HARNESS AND CONNECTOR

(a) Disconnect the connector from the airbag ECU assembly.

(b) Check for a short in the circuit.

(1) Release the activation prevention mechanism built into connector B.

HINT:

Click here

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O208-1 (ICL+) - O208-2 (ICL-)

Always

1 MΩ or higher

Result:

Proceed to

OK

NG

(3) Restore the released activation prevention mechanism of connector B to the original condition.

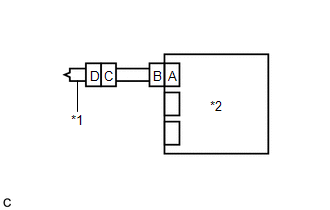

*1

Curtain Shield Airbag Assembly LH

*2

Airbag ECU Assembly

*3

Wire Harness

*a

Front view of wire harness connector

(to Curtain Shield Airbag Assembly LH)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

7.

CLEAR DTC

(a) Connect the connectors to the curtain shield airbag assembly LH and airbag ECU assembly.

*1

Curtain Shield Airbag Assembly LH

*2

Airbag ECU Assembly

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

NEXT

8.

CHECK DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result

Proceed to

B00211A is not output

A

B00211A is output

B

HINT:

Codes other than DTC B00211A may be output at this time, but they are not related to this check.

A

USE SIMULATION METHOD TO CHECK

Click here

HINT:

  • Perform the simulation method by selecting Check Mode using the GTS.

    Click here

  • Perform the simulation method while checking the Data List.

    Click here

B

REPLACE AIRBAG ECU ASSEMBLY
