Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

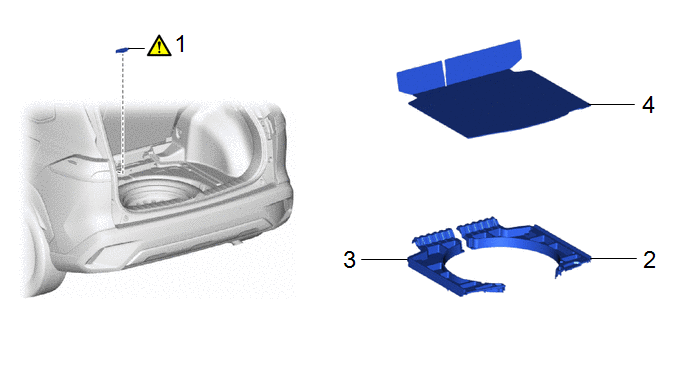

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

899A0B

-

-

2

DECK FLOOR BOX RH

64995

-

-

-

3

DECK FLOOR BOX LH

64997

-

-

-

4

DECK BOARD ASSEMBLY

-

-

-

-

PROCEDURE

1. INSTALL NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:

Be careful when installing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.

2. INSTALL DECK FLOOR BOX RH

Click here

3. INSTALL DECK FLOOR BOX LH

Click here

4. INSTALL DECK BOARD ASSEMBLY

Click here
