Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

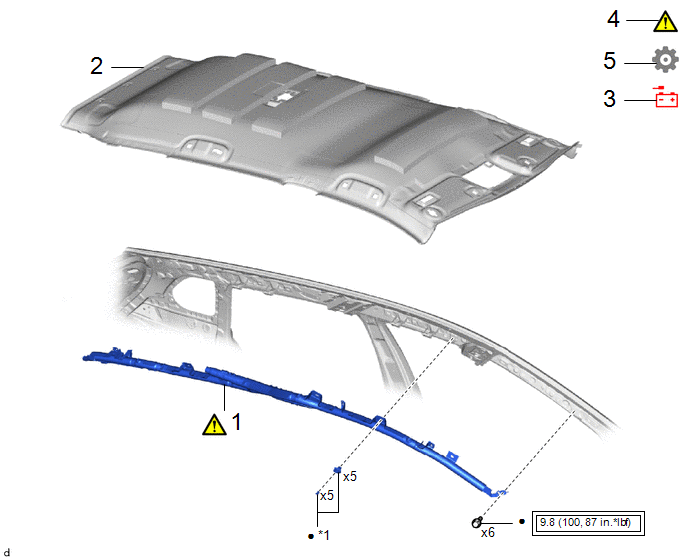

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | CURTAIN SHIELD AIRBAG ASSEMBLY |
62180A |
|
- | - |
|
2 | ROOF HEADLINING ASSEMBLY |
63310 | - |
- | - |
|
3 | CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL |
- | - |
- | - |
|
4 | INSPECT SRS WARNING LIGHT |
- |
|
- | - |
|
5 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL |
- | - |
- |
|
|
*1 | ROOF SIDE INNER GARNISH CLIP |
- | - |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
● | Non-reusable part |
PROCEDURE
1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY
.png)
|

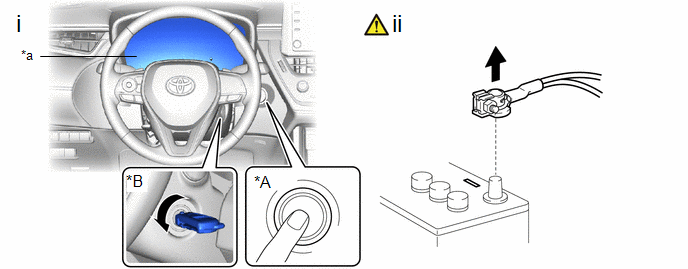

*A | w/ Smart Key System |
*B | w/o Smart Key System |
|
*a | Illumination off |
- | - |
(1) Check that the ignition switch is off.
(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
|

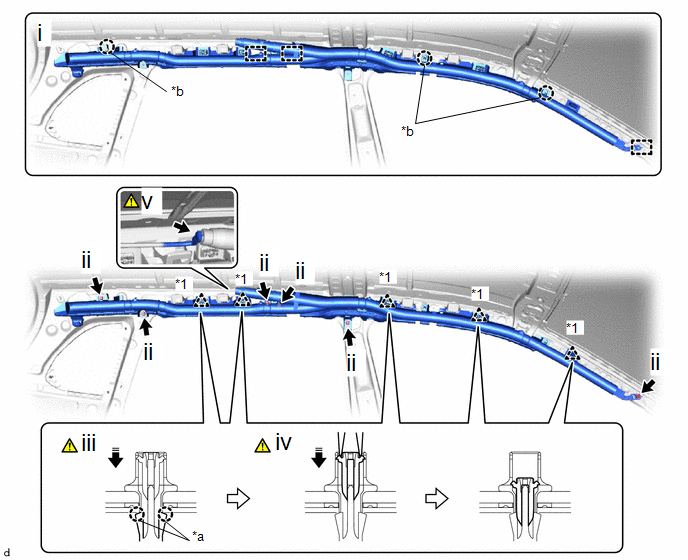

*1 | Roof Side Inner Garnish Clip |
- | - |
|
*a | Claw (A) |
*b | Claw (B) |
.png) |
Remove in this Direction |
- | - |
(1) Engage the hooks and claws (B) to temporarily install the curtain shield airbag assembly.
NOTICE:
Do not twist the curtain shield airbag assembly when installing it.
(2) Install the 6 new bolts.
Torque:
9.8 N·m {100 kgf·cm, 87 in·lbf}
(3) Install the curtain shield airbag assembly with new roof side inner garnish clips.
HINT:
Engage the claws(A) to install each new roof side inner garnish clip.
(4) Push the pins into the roof side inner garnish clips.
NOTICE:
- Do not damage the pins.
- Make sure that the pins of the roof side inner garnish clips are pushed in firmly.
(5) Connect the airbag connector.
NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.
HINT:
Refer to How to Connect or Disconnect Airbag Connector:
Click here
.gif)
2. INSTALL ROOF HEADLINING ASSEMBLY
Click here
3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- for Gasoline Model
Click here
- for HEV Model
Click here
4. INSPECT SRS WARNING LIGHT
|
|
Click here |
5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
