Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Power Outlets (int) / Power Outlet Socket / Installation

INSTALLATION

CAUTION / NOTICE / HINT

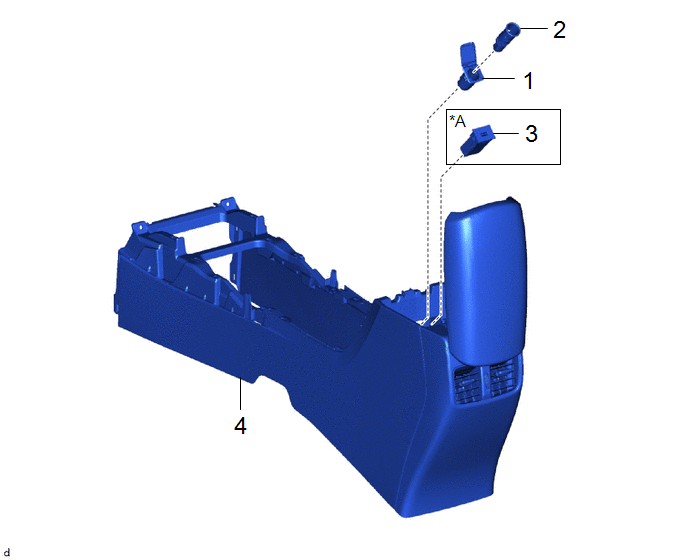

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 1 POWER OUTLET SOCKET COVER

85535B

-

-

-

2

NO. 1 POWER OUTLET SOCKET ASSEMBLY

85530

-

-

-

3

USB CHARGER SOCKET

85532

-

-

-

4

CONSOLE BOX ASSEMBLY

58810J

-

-

-

*A

for USB Single Charger Socket

-

-

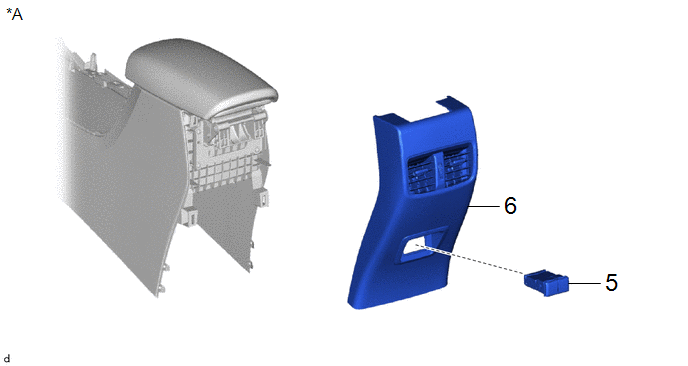

Procedure

Part Name Code

5

USB CHARGER SOCKET

85532

-

-

-

6

CONSOLE REAR END PANEL SUB-ASSEMBLY

-

-

-

-

*A

for USB Double Charger Socket

-

-

PROCEDURE

1. INSTALL NO. 1 POWER OUTLET SOCKET COVER

2. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

3. INSTALL USB CHARGER SOCKET (for USB Single Charger Socket)

4. INSTALL CONSOLE BOX ASSEMBLY

Click here

5. INSTALL USB CHARGER SOCKET (for USB Double Charger Socket)

6. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY (for USB Double Charger Socket)
