Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Lighting (int) / Interior Illumination Light (for Instrument Panel) / Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

(a) Check the illumination.

(1) Apply auxiliary battery voltage to the No. 1 interior illumination light assembly and check that the light illuminates.

OK:

Tester Connection

Specified Condition

I225-2 (B) - Auxiliary battery positive (+)

I225-1 (E) - Auxiliary battery negative (-)

No. 1 interior illumination light assembly illuminates

If the result is not as specified, replace the No. 1 interior illumination light assembly.

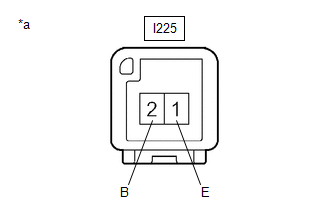

*a

Component without harness connected

(No. 1 Interior Illumination Light Assembly)
