Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Window / Glass / Rear Power Window Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

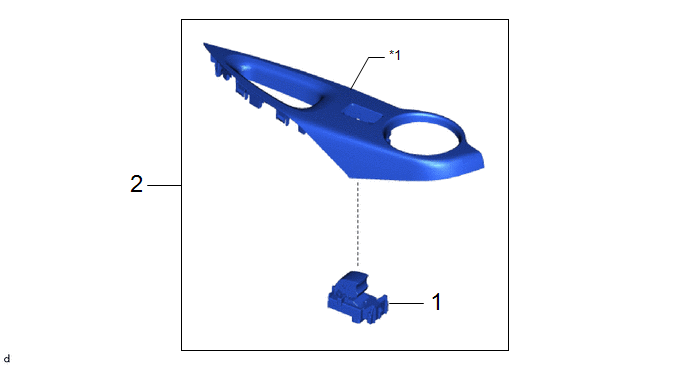

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

84810D

-

-

-

2

REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

-

-

-

-

*1

REAR DOOR UPPER ARMREST BASE PANEL

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

2. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
