Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

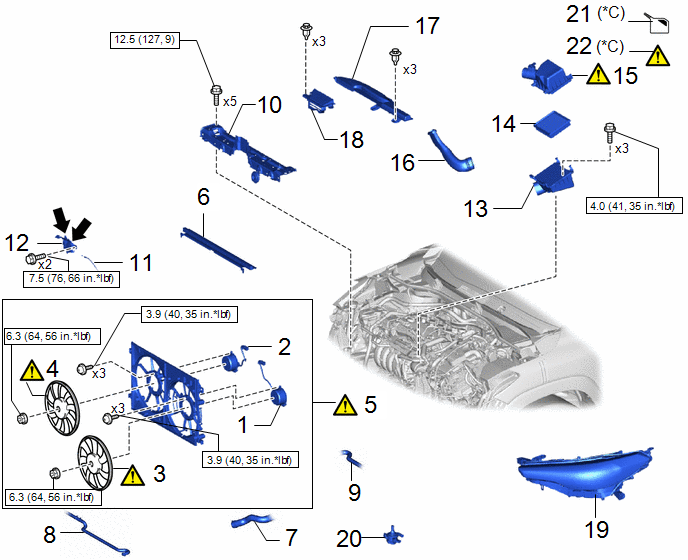

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

COOLING FAN MOTOR

16363

-

-

-

2

NO. 2 COOLING FAN MOTOR

16363A

-

-

-

3

FAN

16361

-

-

4

NO. 2 FAN

16361B

-

-

5

FAN WITH MOTOR ASSEMBLY

-

-

-

6

NO. 2 RADIATOR AIR GUIDE

16594A

-

-

-

7

NO. 2 RADIATOR HOSE

16572D

-

-

-

8

INLET HYBRID RADIATOR HOSE

G922H

-

-

-

9

NO. 2 WATER BY-PASS HOSE

16264D

-

-

-

10

UPPER RADIATOR SUPPORT SUB-ASSEMBLY

-

-

-

-

11

HOOD LOCK CONTROL CABLE ASSEMBLY

53630

-

-

-

12

HOOD LOCK ASSEMBLY

53510

-

-

-

13

AIR CLEANER CASE SUB-ASSEMBLY

17701

-

-

-

14

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

17801

-

-

-

15

AIR CLEANER CAP SUB-ASSEMBLY

17705

-

-

16

INLET NO. 2 AIR CLEANER

17752

-

-

17

INLET NO. 1 AIR CLEANER

17751

-

-

-

18

INLET NO. 3 AIR CLEANER

17753

-

-

-

19

HEADLIGHT ASSEMBLY

-

-

-

-

20

INVERTER WATER PUMP WITH MOTOR ASSEMBLY

G9040

-

-

-

21

ADD ENGINE COOLANT

-

-

-

22

INSPECT FOR COOLANT LEAK

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

PROCEDURE

1. INSTALL COOLING FAN MOTOR

Torque:

3.9 N·m {40 kgf·cm, 35 in·lbf}

2. INSTALL NO. 2 COOLING FAN MOTOR

Torque:

3.9 N·m {40 kgf·cm, 35 in·lbf}

3. INSTALL FAN

NOTICE:

Do not reverse the position of the fan LH and fan RH when installing them. Doing so may damage the parts.

Torque:

6.3 N·m {64 kgf·cm, 56 in·lbf}

4. INSTALL NO. 2 FAN

NOTICE:

Do not reverse the position of the fan LH and fan RH when installing them. Doing so may damage the parts.

Torque:

6.3 N·m {64 kgf·cm, 56 in·lbf}

5. INSTALL FAN WITH MOTOR ASSEMBLY

NOTICE:

Do not damage the radiator assembly when installing the fan with motor assembly.

6. INSTALL NO. 2 RADIATOR AIR GUIDE

7. CONNECT NO. 2 RADIATOR HOSE

8. CONNECT INLET HYBRID RADIATOR HOSE

9. CONNECT NO. 2 WATER BY-PASS HOSE

10. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

11. CONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

12. INSTALL HOOD LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

Click here

13. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

14. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

15. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

Click here

16. INSTALL INLET NO. 2 AIR CLEANER

17. INSTALL INLET NO. 1 AIR CLEANER

18. INSTALL INLET NO. 3 AIR CLEANER

19. INSTALL HEADLIGHT ASSEMBLY

  • for Bulb Type Clearance Light:

    Click here

  • for LED Type Clearance Light:

    Click here

20. INSTALL INVERTER WATER PUMP WITH MOTOR ASSEMBLY

Click here

21. ADD ENGINE COOLANT (for Engine)

Click here

22. INSPECT FOR COOLANT LEAK (for Engine)

Click here
