Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|

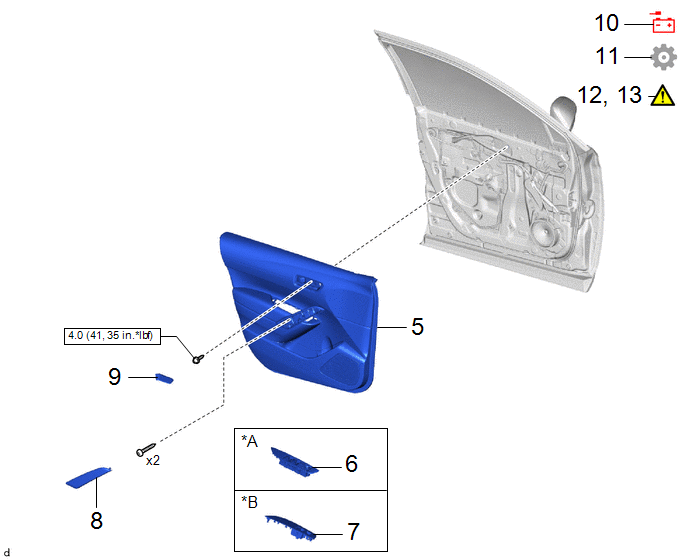

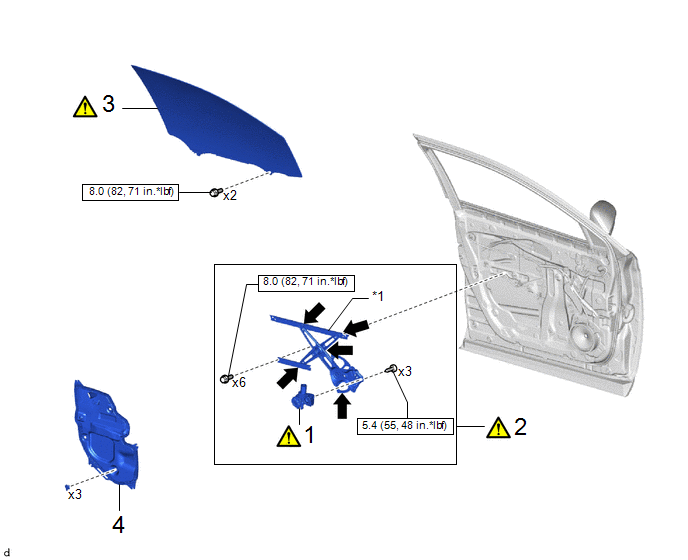

Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY |
85720D |
|
- | - |
|
2 | FRONT DOOR WINDOW REGULATOR ASSEMBLY |
- |
|
- | - |
|
3 | FRONT DOOR GLASS SUB-ASSEMBLY |
68102 |
|
- | - |
|
4 | FRONT DOOR SERVICE HOLE COVER |
67832 | - |
- | - |
|
*1 | FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
.png) |
MP grease |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
67602 | - |
- | - |
|
6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- | - |
- | - |
|
7 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- | - |
- | - |
|
8 | DOOR ASSIST GRIP COVER |
74646 | - |
- | - |
|
9 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
69284F | - |
- | - |
|
10 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL |
- | - |
- | - |
|
11 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL |
- | - |
- |
|
|
12 | INITIALIZE POWER WINDOW CONTROL SYSTEM |
- |
|
- | - |
|
13 | INSPECT POWER WINDOW OPERATION |
- |
|
- | - |
|
*A | for Driver Side |
*B | for Front Passenger Side |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY
|
|
NOTICE: The regulator arm must be below the intermediate position when installing the power window regulator motor assembly. |

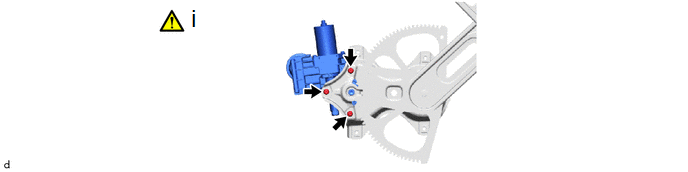

(1) Using a T25 "TORX" socket wrench, install the power window regulator motor assembly with the 3 screws to the front door window regulator sub-assembly.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
HINT:
When replacing a power window regulator motor assembly, a new power window regulator motor assembly uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.
2. INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY
|
|
Click here |
3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
|
|
Click here |
4. INSTALL FRONT DOOR SERVICE HOLE COVER
5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here .gif)
6. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
7. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
8. INSTALL DOOR ASSIST GRIP COVER
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
12. INITIALIZE POWER WINDOW CONTROL SYSTEM
Click here
13. INSPECT POWER WINDOW OPERATION
Click here
