Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

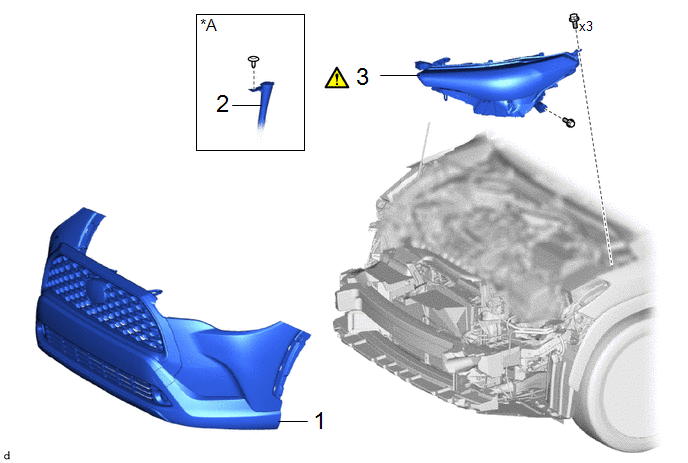

COMPONENTS (REMOVAL).png)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT BUMPER ASSEMBLY |
- | - |
- | - |
|
2 | WASHER INLET SUB-ASSEMBLY |
85301 | - |
- | - |
|
3 | HEADLIGHT ASSEMBLY |
- |
|
- | - |
|
*A | for RH Side |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT BUMPER ASSEMBLY
- for Sport Package:
Click here
.gif)
- except Sport Package:
Click here

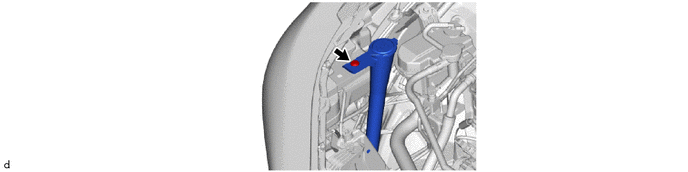

2. SEPARATE WASHER INLET SUB-ASSEMBLY (for RH Side)
.png)

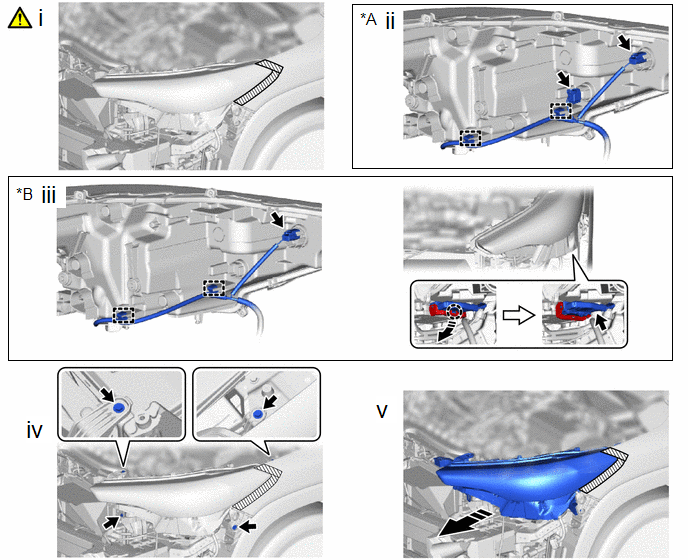

3. REMOVE HEADLIGHT ASSEMBLY
|
*A | w/o AFS |
*B | w/ AFS |
.png) |
Remove in this Direction |
- | - |
(1) Apply protective tape around the headlight assembly as shown in the illustration.
(2) w/o AFS:
1. Disengage the clamps to disconnect the 2 connectors.
(3) w/ AFS:
1. Disengage the clamps to disconnect the connector.
2. Disengage the claw to disconnect the connector as shown in the illustration.
(4) Remove the bolt and 3 screws.
(5) Remove the headlight assembly as shown in the illustration.
