Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

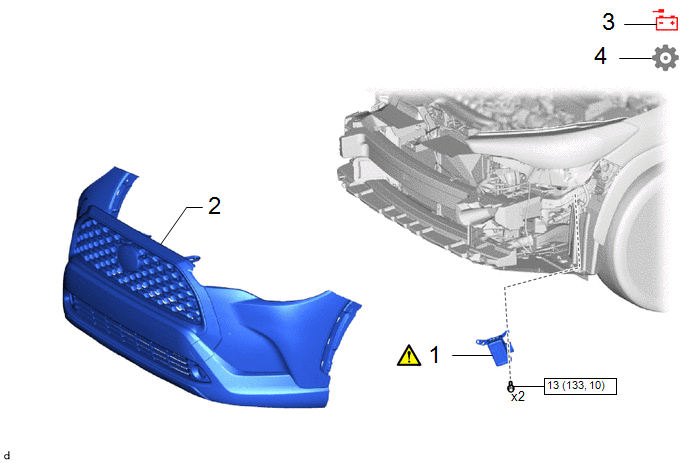

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | ECO RUN VEHICLE CONVERTER ASSEMBLY |
G92C0B |
|
- | - |
|
2 | FRONT BUMPER ASSEMBLY |
- | - |
- | - |
|
3 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL |
- | - |
- | - |
|
4 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL |
- | - |
- |
|
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
PROCEDURE
1. INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY
|
*a | Lock Lever |
- | - |

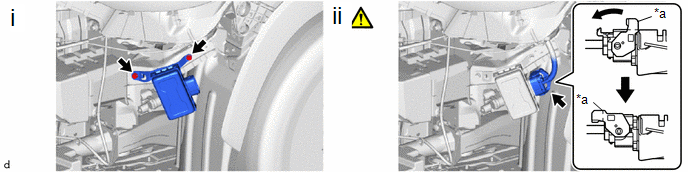

(1) Install the eco run vehicle converter assembly with the 2 bolts.
Torque:
13 N·m {133 kgf·cm, 10 ft·lbf}
(2) Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock the connector.
2. INSTALL FRONT BUMPER ASSEMBLY
Click here
.gif)
3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
