Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

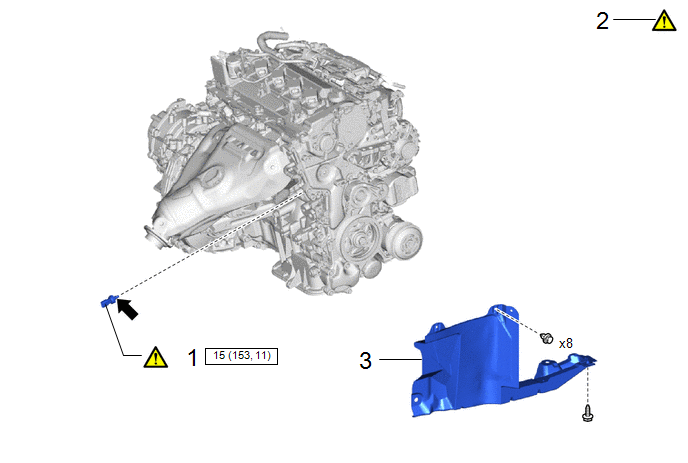

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

OIL PRESSURE AND TEMPERATURE SENSOR

89448D

-

-

2

INSPECT FOR ENGINE OIL LEAK

-

-

-

-

3

REAR ENGINE UNDER COVER RH

51443C

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL OIL PRESSURE AND TEMPERATURE SENSOR

*a

Oil Inlet Port

*b

3 Threads or More

Adhesive Application Area

-

-

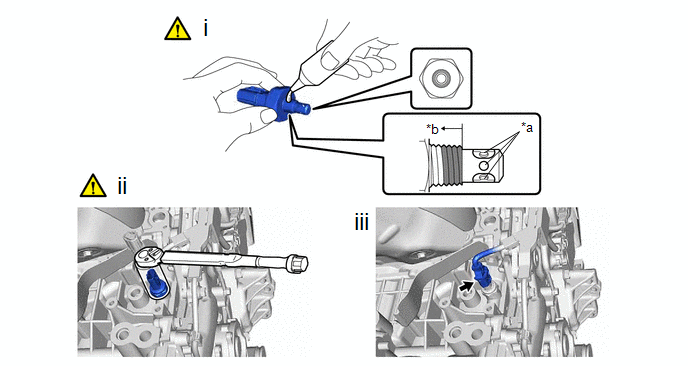

(1) Apply adhesive to the area shown in the illustration.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

NOTICE:

  • Do not apply adhesive to the oil inlet port of the oil pressure and temperature sensor.
  • Apply the adhesive to the first 3 threads or more of the oil pressure and temperature sensor.
  • Apply adhesive to the entire circumference of the thread.
  • To prevent contamination by foreign matter, install immediately after applying adhesive.

(2) Using a 24 mm deep socket wrench, install the oil pressure and temperature sensor.

Torque:

15 N·m {153 kgf·cm, 11 ft·lbf}

NOTICE:

Do not start the engine within 1 hour of installation.

(3) Connect the oil pressure and temperature sensor connector.

2. INSPECT FOR ENGINE OIL LEAK

Click here

3. INSTALL REAR ENGINE UNDER COVER RH

Click here
