Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

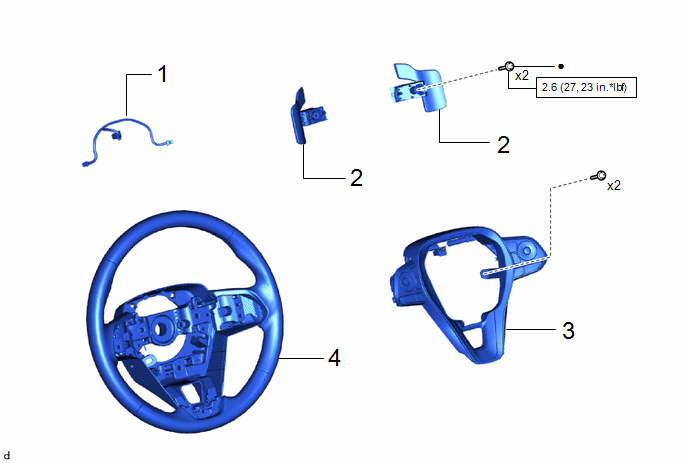

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 1 SWITCH WIRE

84523

-

-

-

2

SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

-

-

-

-

3

STEERING PAD SWITCH ASSEMBLY

84250A

-

-

-

4

STEERING WHEEL ASSEMBLY

45100

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Precoated part

-

-

PROCEDURE

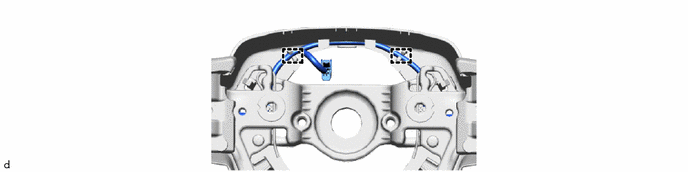

1. INSTALL NO. 1 SWITCH WIRE

HINT:

Perform this procedure only when replacement of the No. 1 switch wire is necessary.

2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

Torque:

2.6 N·m {27 kgf·cm, 23 in·lbf}

3. INSTALL STEERING PAD SWITCH ASSEMBLY

4. INSTALL STEERING WHEEL ASSEMBLY
