Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / Axle And Differential / Differential Mount Cushion / Installation

INSTALLATION

CAUTION / NOTICE / HINT

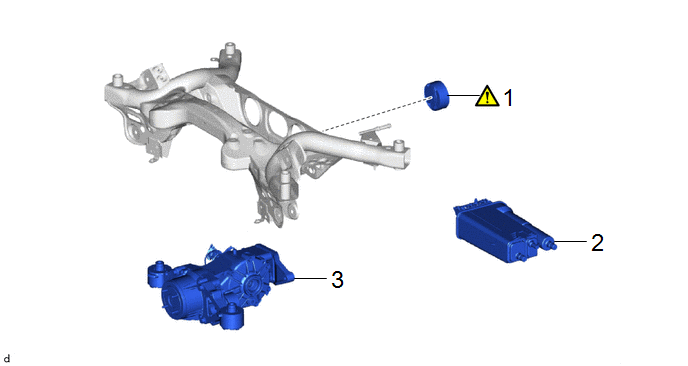

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

41651

-

-

2

CHARCOAL CANISTER ASSEMBLY

77740

-

-

-

3

REAR DIFFERENTIAL CARRIER ASSEMBLY

41110

-

-

-

PROCEDURE

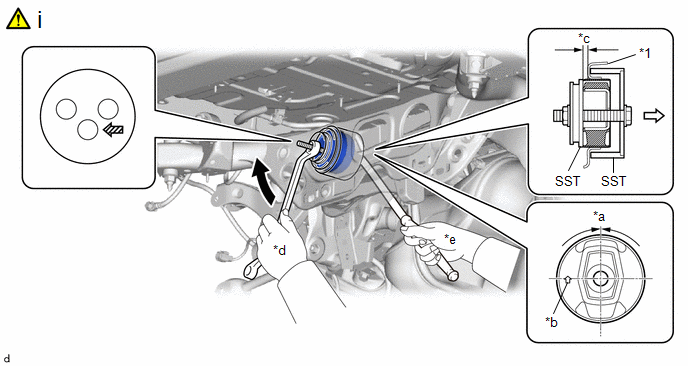

1. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

*1

Rear Suspension Member Sub-assembly

-

-

*a

-3° to 3°

*b

Arrow Mark

*c

5.0 to 6.0 mm (0.197 to 0.236 in.)

*d

Turn

*e

Hold

-

-

Front of Vehicle

SST Bolt Position

(1) Using SST, install a new rear No. 1 differential mount cushion to the rear suspension member sub-assembly.

SST: 09316-20011

SST: 09570-24011

NOTICE:

  • Be sure to install the rear No. 1 differential mount cushion so that the arrow mark faces the upper of the vehicle.
  • Make sure that the rear No. 1 differential mount cushion is aligned within 3° from the center.
  • Temporarily install the rear No. 1 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
  • Before using SST, apply grease to SST bolt.
  • Be sure to use the correct combination of SST.
  • Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
  • Do not tilt the bolt of SST.

2. INSTALL CHARCOAL CANISTER ASSEMBLY

Click here

3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

Click here
