Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

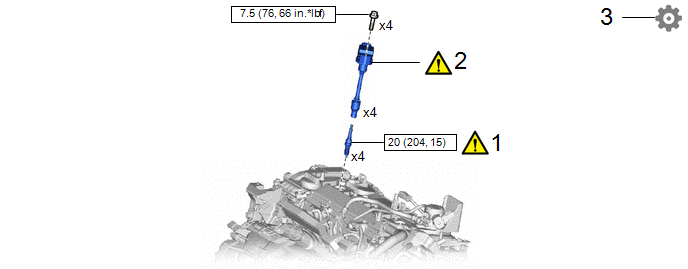

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

SPARK PLUG

19100P

-

-

2

IGNITION COIL ASSEMBLY

19500

-

-

3

PERFORM INITIALIZATION

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL SPARK PLUG

NOTICE:

If a spark plug has been struck or dropped, replace it.

HINT:

Perform "Inspection After Repair" after replacing a spark plug.

Click here

(a) Install the 4 spark plugs to the cylinder head sub-assembly.

Torque:

20 N·m {204 kgf·cm, 15 ft·lbf}

2. INSTALL IGNITION COIL ASSEMBLY

Click here

3. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.

Click here
