INSPECTION

PROCEDURE

1. INSPECT REAR SEAT BELT ASSEMBLY OUTER

(a) Before installing the rear 3 point type seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.

(1) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear 3 point type seat outer belt assembly.

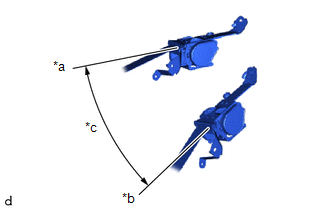

*a

Unlock

*b

Lock

*c

45°
