Toyota Corolla Cross: Inspection
INSPECTION
PROCEDURE
1. INSPECT TURN SIGNAL SWITCH
(a) Resistance Check.
|
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance: Light Control Switch |
Tester Connection | Condition |
Specified Condition | |
*1: w/ DRL OFF Switch
*2: w/ Light Control Switch OFF Position *3: w/ DRL Switch *4: w/ Automatic Light Control System | |
z17-2 (L_OFF) - z17-12 (EL) |
Light control switch DRL-OFF*1 Light control switch OFF*2 |
Below 1 Ω | |
z17-10 (A) - z17-12 (EL) |
Light control switch DRL position*3 Light control switch AUTO position*4 |
Below 1 Ω | |
z17-14 (T) - z17-12 (EL) |
Light control switch in tail position |
Below 1 Ω | |
z17-5 (H) - z17-12 (EL) |
Light control switch in head position |
Below 1 Ω | Dimmer Passing Switch |
Tester Connection | Condition |
Specified Condition | |
z17-6 (HF) - z17-12 (EL) |
Dimmer switch in flash position |
Below 1 Ω | |
z17-1 (HU) - z17-12 (EL) |
Dimmer switch in high position |
Below 1 Ω | Fog Light Switch (w/ Fog Light) |
Tester Connection | Condition |
Specified Condition | |
z17-4 (BFG) - z17-12 (EL) |
Fog light switch off |
10 kΩ or higher | |
z17-4 (BFG) - z17-12 (EL) |
Fog light switch on |
Below 1 Ω | Turn Signal Switch |
Tester Connection | Condition |
Specified Condition | |
z17-9 (TR) - z17-12 (EL) |
Turn signal switch in neutral position |
10 kΩ or higher | |
z17-3 (TL) - z17-12 (EL) |
Turn signal switch in neutral position |
10 kΩ or higher | |
z17-9 (TR) - z17-12 (EL) |
Turn signal switch in right turn position |
Below 1 Ω | |
z17-9 (TR) - z17-12 (EL) |
Turn signal switch in full right turn position |
Below 1 Ω | |
z17-9 (TR) - z17-11 (CR) |
Turn signal switch in full right turn position |
Below 1 Ω | |
z17-11 (CR) - z17-12 (EL) |
Turn signal switch in full right turn position |
Below 1 Ω | |
z17-3 (TL) - z17-12 (EL) |
Turn signal switch in left turn position |
Below 1 Ω | |
z17-3 (TL) - z17-12 (EL) |
Turn signal switch in full left turn position |
Below 1 Ω | |
z17-3 (TL) - z17-11 (CR) |
Turn signal switch in full left turn position |
Below 1 Ω | |
z17-11 (CR) - z17-12 (EL) |
Turn signal switch in full left turn position |
Below 1 Ω |
HINT:
- The left turn or right turn condition indicates a condition in which the turn signal switch will return to the neutral position after releasing your hand from the turn signal switch (turn signal switch is operated approximately 6.3°).
- The full left turn or full right turn condition indicates a condition in which the turn signal switch will not return to the neutral position after releasing your hand from the turn signal switch (turn signal switch is operated 10.5°).
If the result is not as specified, replace the turn signal switch. |
 |
|

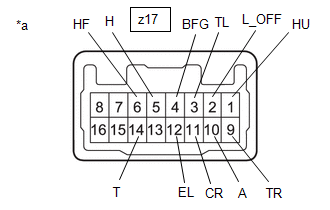

*a | Component without harness connected
(Turn Signal Switch) | | |
