Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Acoustic Vehicle Alerting System / Vehicle Approaching Speaker / Inspection

INSPECTION

PROCEDURE

1. INSPECT VEHICLE APPROACHING SPEAKER ASSEMBLY

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A186-1(-) - A186-2(+)

Always

3.2 to 4.8 Ω

HINT:

  • Make sure that there are no problems such as looseness or play with the installation of the vehicle approaching speaker assembly.
  • Make sure that there are no abnormalities with the vehicle approaching speaker assembly such as the presence of foreign material or tears in the paper of the speaker cone.

If the result is not as specified, replace the vehicle approaching speaker assembly.

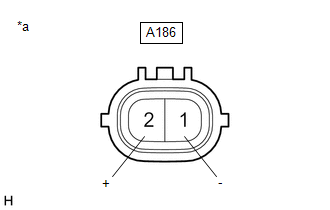

*a

Component without harness connected

(Vehicle Approaching Speaker Assembly)
