Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / M20a-fks (fuel) / Fuel Pump (for High Pressure) / Inspection

INSPECTION

PROCEDURE

1. INSPECT FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

0.45 to 0.55 Ω

If the result is not as specified, replace the fuel pump assembly.

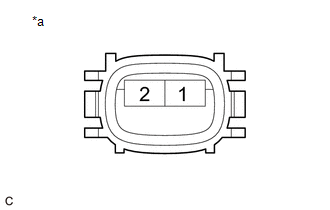

*a

Component without harness connected

(Fuel Pump Assembly)
