Toyota Corolla Cross: Inspection
INSPECTION
PROCEDURE
1. INSPECT NO. 2 FUEL PRESSURE SENSOR
(a) Check the No. 2 fuel pressure sensor output voltage.

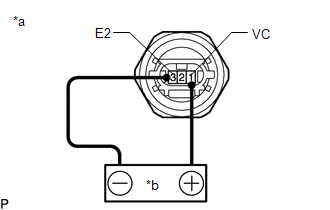

(1) Apply 5 V between terminals 1 (VC) and 3 (E2).
NOTICE:
- Be careful when connecting the leads, as the No. 2 fuel pressure sensor may be damaged if the leads are connected to the wrong terminals.
- Do not apply more than 6 V to terminals 1 (VC) or 3 (E2).
HINT: If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series. |
|
*a | Component without harness connected
(No. 2 Fuel Pressure Sensor) |
*b | Voltage Applied between Terminals | | |

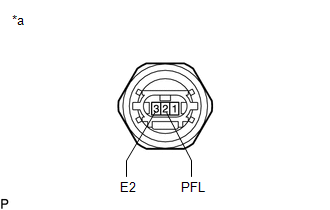

(2) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection | Condition |
Specified Condition |
2 (PFL) - 3 (E2) |
Pressure not applied to No. 2 fuel pressure sensor |
Approximately 0.57 to 0.95 V* |
*: The output voltage changes depending on the voltage applied to the terminals.
If the result is not as specified, replace the No. 2 fuel pressure sensor. |
|
*a | Component without harness connected
(No. 2 Fuel Pressure Sensor) | | |
