Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY LH (w/o Stereo Component Amplifier)

(a) With the front No. 2 speaker assembly LH installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the front No. 2 speaker assembly LH, no tears on the front No. 2 speaker assembly LH cone or other abnormalities.

(c) Measure the resistance of the front No. 2 speaker assembly LH.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I77-4 (TWL+) - I77-2 (TWL-)

Always

10 kΩ or higher

I77-1 (-) - I77-2 (TWL-)

Always

Below 1 Ω

I77-3 (+) - I77-4 (TWL+)

Always

Below 1 Ω

If the result is not as specified, replace the front No. 2 speaker assembly LH.

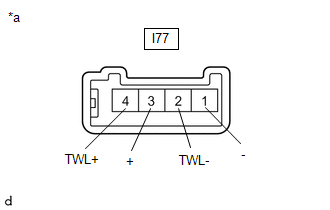

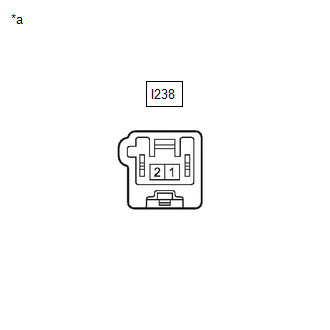

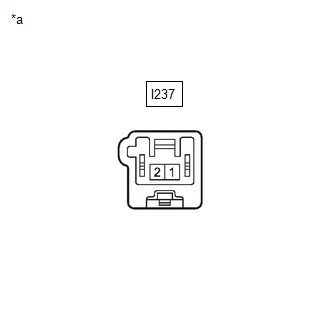

*a

Component without harness connected

(Front No. 2 Speaker Assembly LH)

2. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY RH (w/o Stereo Component Amplifier)

(a) With the front No. 2 speaker assembly RH installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the front No. 2 speaker assembly RH, no tears on the front No. 2 speaker assembly RH cone or other abnormalities.

(c) Measure the resistance of the front No. 2 speaker assembly RH.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I76-4 (TWR+) - I76-2 (TWR-)

Always

10 kΩ or higher

I76-1 (-) - I76-2 (TWR-)

Always

Below 1 Ω

I76-3 (+) - I76-4 (TWR+)

Always

Below 1 Ω

If the result is not as specified, replace the front No. 2 speaker assembly RH.

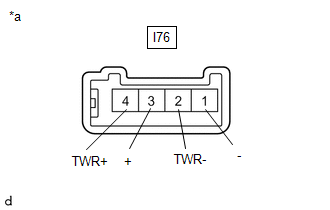

*a

Component without harness connected

(Front No. 2 Speaker Assembly RH)

3. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY LH (w/ Stereo Component Amplifier)

(a) With the front No. 2 speaker assembly LH installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the front No. 2 speaker assembly LH, no tears on the front No. 2 speaker assembly LH cone or other abnormalities.

(c) Measure the resistance of the front No. 2 speaker assembly LH.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I238-1 - I238-2

Always

2.8 to 3.8 Ω

If the result is not as specified, replace the front No. 2 speaker assembly LH.

*a

Component without harness connected

(Front No. 2 Speaker Assembly LH)

4. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY RH (w/ Stereo Component Amplifier)

(a) With the front No. 2 speaker assembly RH installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the front No. 2 speaker assembly RH, no tears on the front No. 2 speaker assembly RH cone or other abnormalities.

(c) Measure the resistance of the front No. 2 speaker assembly RH.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I237-1 - I237-2

Always

2.8 to 3.8 Ω

If the result is not as specified, replace the front No. 2 speaker assembly RH.

*a

Component without harness connected

(Front No. 2 Speaker Assembly RH)
