Toyota Corolla Cross: Fuel Rail Pressure Sensor "A" Signal Stuck in Range (P01902A,P019064)

DESCRIPTION

Refer to DTC P019011.

Click here

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Note
P01902A	Fuel Rail Pressure Sensor "A" Signal Stuck in Range	When target high pressure side fuel pressure changes, the change in fuel pressure sensor value is abnormal (2 trip detection logic).	Fuel pressure Fuel pressure sensor (for high pressure side) Open or short in fuel pressure sensor (for high pressure side) circuit ECM	Comes on	SAE Code: P0191 DTC for Mexico Models: Does not apply
P019064	Fuel Rail Pressure Sensor "A" Signal Plausibility Failure	Although engine has been stopped and left as is for a long time, high pressure side fuel pressure is higher or lower than threshold (2 trip detection logic).	Fuel pressure Fuel pressure sensor (for high pressure side) Open or short in fuel pressure sensor (for high pressure side) circuit ECM	Comes on	SAE Code: P0191 DTC for Mexico Models: Does not apply

MONITOR DESCRIPTION

Fuel Pressure Sensor Stuck Monitor

If the fuel pressure sensor (for high pressure side) value does not follow the change in the target high pressure side fuel pressure, it is judged as a malfunction. If this malfunction is detected in 2 consecutive driving cycles, the ECM will illuminate the MIL and store DTC P01902A.

Fuel Pressure Sensor Correlation Monitor with Barometric Pressure

If the fuel pressure sensor (for high pressure side) value is less than or higher than the threshold value when a cold start is performed after the engine has been warmed up and then stopped, it is judged as a malfunction has occurred. If this malfunction is detected for 2 consecutive driving cycles, the ECM will illuminate the MIL and store DTC P019064.

MONITOR STRATEGY

Related DTCs	P0191: Fuel pressure sensor rationality (stuck monitor) P0191: Fuel pressure sensor rationality (correlation monitor with barometric pressure)
Required Sensors/Components (Main)	Fuel pressure sensor (for high pressure side)
Required Sensors/Components (Related)	Atmospheric pressure sensor (ECM)
Frequency of Operation	Continuous
Duration	Within 30 seconds: Stuck monitor Within 10 seconds: Correlation monitor with barometric pressure
MIL Operation	2 driving cycles
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Stuck Monitor

All of the following conditions are met	-
Fuel pressure sensor (for high pressure side) circuit malfunction (P0192, P0193)	Not detected
High pressure fuel pump malfunction (P1235)	Not detected
Engine coolant temperature sensor malfunction (P0117, P0118)	Not detected
Barometric pressure sensor malfunction (P106C, P2228, P2229)	Not detected
Auxiliary battery voltage	11 V or higher
Fuel cut	Off
Injection mode	NOT PFI (Port fuel injection)

Correlation Monitor with Barometric Pressure

All of the following conditions are met	-
Fuel pressure sensor (for high pressure side) circuit malfunction (P0192, P0193)	Not detected
High pressure fuel pump malfunction (P1235)	Not detected
Engine coolant temperature sensor malfunction (P0117, P0118)	Not detected
Barometric pressure sensor malfunction (P106C, P2228, P2229)	Not detected
Soak timer malfunction (P2610)	Not detected
Auxiliary battery voltage	8 V or higher
Ignition switch	Off
Soak time	5, 7 or 9.5 hours
Atmospheric pressure	76 kPa(abs) [11 psi(abs)] or higher

TYPICAL MALFUNCTION THRESHOLDS

Stuck Monitor

Malfunction counter	5 times or more
Fuel pressure sensor (for high pressure side) output deviation	Less than 0.3 MPa (3.1 kgf/cm2, 43.5 psi)

Correlation Monitor with Barometric Pressure

Malfunction counter	5 seconds or more
Fuel pressure sensor (for high pressure side) output	Less than -1.881 MPa (-19.2 kgf/cm2, -273 psi), or higher than 2.543 MPa (25.9 kgf/cm2, 369 psi)

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

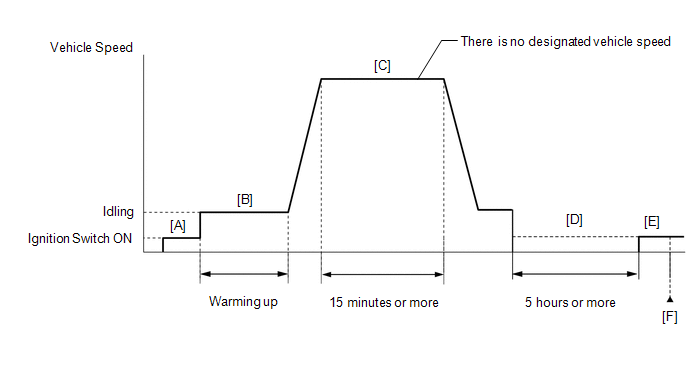

1. Connect the GTS to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the GTS on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON [A].
7. Turn the GTS on.
8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
9. Drive the vehicle for 15 minutes or more [C].

   CAUTION:

   When performing the confirmation driving pattern, obey all speed limits and traffic laws.

10. Turn the ignition switch off.
11. With the engine stopped, leave the vehicle as is for 5 hours or more [D].
12. Turn the ignition switch to ON [E].
13. Turn the GTS on.
14. Enter the following menus: Powertrain / Engine / Trouble Codes [F].
15. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
16. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
17. Input the DTC: P01902A or P019064.
18. Check the DTC judgment result.

    GTS Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [B] through [F] again.
    • [A] to [F]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P019011.

Click here

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.	CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P01902A OR P019064)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTC P01902A or P019064 is output	A
DTC P01902A or P019064 and P008700, P008800, P017100 or P017200 are output
DTC P01902A or P019064 and other DTCs are output	B

HINT:

• If DTC P01902A or P019064 and P008700, P008800, P017100 or P017200 are output simultaneously, troubleshoot for DTC P01902A or P019064 first.
• If any DTCs other than P01902A or P019064 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.	CHECK FUEL LEAK

(a) Check around and beneath the vehicle for fuel leaks, fumes, etc.

OK:

No fuel leaks present.

NG

GO TO STEP 11

OK

3.	PERFORM ACTIVE TEST USING GTS (CONTROL THE TARGET FUEL PRESSURE OFFSET)

(a) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

(b) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
Control the Target Fuel Pressure Offset

Data List Display
Coolant Temperature
High Fuel Pressure Sensor

(c) Check the value of the Data List item "High Fuel Pressure Sensor" when the target fuel pressure is increased and decreased using the Active Test.

Result	Proceed to
"High Fuel Pressure Sensor" value follows the change in target fuel pressure	A
"High Fuel Pressure Sensor" value does not follow the change in target fuel pressure	B

B

GO TO STEP 10

A

4.	CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the ECM connector.

(b) Disconnect the fuel pressure sensor (for high pressure side) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Z3-3 (PR) - C76-97 (PR)	Always	Below 1 Ω
Z3-2 (E2) - C76-96 (EPR)	Always	Below 1 Ω
Z3-3 (PR) or C76-97 (PR) - Body ground and other terminals	Always	10 kΩ or higher

NG

GO TO STEP 8

OK

5.	REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)

Click here

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).

Click here

NEXT

6.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

7.	CHECK WHETHER DTC OUTPUT RECURS (DTC P01902A OR P019064)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the pending DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTCs are not output	A
DTC P01902A or P019064 is output	B

A

END

B

GO TO STEP 9

8.	REPAIR OR REPLACE HARNESS OR CONNECTOR

(a) Repair or replace the wire harness or connector.

NEXT

GO TO STEP 12

9.	REPLACE ECM

(a) Replace the ECM.

Click here

NEXT

GO TO STEP 12

10.	REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)

Click here

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).

Click here

NEXT

GO TO STEP 12

11.	REPAIR OR REPLACE FUEL LEAK POINT

(a) Repair or replace the fuel leak point.

NEXT

12.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

13.	CHECK WHETHER DTC OUTPUT RECURS (DTC P01902A OR P019064)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the pending DTCs.

Powertrain > Engine > Trouble Codes

OK:

DTCs are not output

NEXT

END
